Panduit Panduit P14-8LF-M

Name: Panduit P14-8LF-M
Brand: Panduit
SKU: 2375412
Price: 0.23 USD
Availability: InStock

Panduit P14-8LF-M

Kirby Risk #: 2375412

UPC: 07498380909, 074983809097, 00074983809097

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

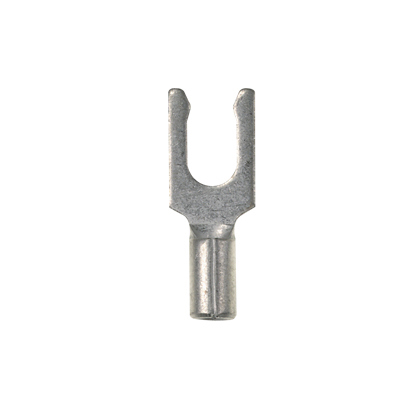

Locking Fork Terminal, non-insulated, 18- 14 AWG, #8 stud size, bulk package.

Modified Industry Description

Locking Fork Terminal,

AD Description

Panduit® Pan-Term® P14-8LF-M P-LF Non-Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.77 in L, Brazed Seam Barrel, Copper, Metallic

Color	Metallic
Conductor Type	Solid/Stranded
Connection	Standard
Conductor Size	18 to 14
Country of Origin	MEX
Enclosure	Fork shape
Finish	Tin Plated
Insulation	None
Length1	0.77
Material	Copper
Mounting	9/32
Series	P-LF
Size	#8
Special Features	Barrel of terminal internally beveled to provide quick and easy wire insertion Brazed seam protects terminal barrel from splitting during the crimp process Fork design provides for fast and easy installation, without the need to remove fastener Internal barrel serrations assure good wire contact and maximum tensile strength Locks in place for secure connection
Standard	Yes - American Bureau of Shipping (ABS)
Sub_Brand	Panduit
Temperature_Rating	302
Type	Non-Insulated
Voltage Rating	2000
