3M 3M M10-10FBX
3M M10-10FBX
Kirby Risk #: 2374629
UPC: 05112858720, 051128587201, 00051128587201
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

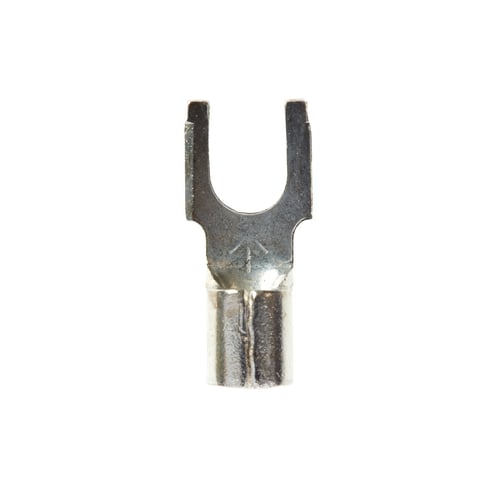

3M™ Scotchlok™ Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
NON-INSULATED BRAZED SEAM BLOCK
AD Description
Scotchlok™ 051128-58720 Block Fork Terminal, 12 to 10 AWG Conductor, 0.73 in L, Brazed Barrel, ETP Copper, Yellow
Vendor Description
Block forks have the same strength as the standard fork, but are designed to use in a terminal block because their sides lie flat against the barrier portion of the terminal block.
Specifications
| Color |
Yellow
|
|---|---|
| Conductor Type |
Non-Insulated
|
| Conductor Size |
12 to 10 AWG
|
| Country of Origin |
USA
|
| Dimensions |
0.32 in W x 0.04 in THK
|
| Length1 |
0.73 in
|
| Material |
ETP Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
347 deg F
|
| Type |
Block
|
| Voltage Rating |
600 to 1000 VAC
|
