3M 3M M14-10FBX


Description

Industry Description

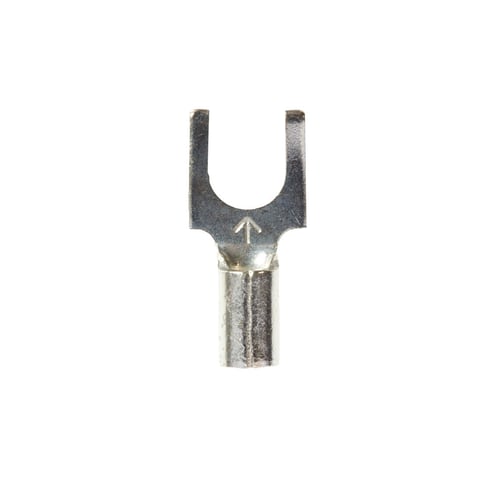

3M™ Scotchlok™ Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

NON-INSULATED BRAZED SEAM BLOCK

AD Description

Scotchlok™ 051128-58669 Non-Insulated Block Fork Terminal, 16 to 14 AWG Conductor, 0.65 in L, Brazed Seam Barrel, Copper

Vendor Description

3M™ Scotchlok™ Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance.

Specifications

Conductor Type
Stranded Copper
Conductor Size
16 to 14 AWG
Country of Origin
US
Finish
Electro-Tin Plated
Length1
0.65 in
Material
Copper
Special Features

  • Beveled mouth offers easy insertion of wires
  • Crimp termination
  • Electrolytic copper construction offers good conductivity
  • Free hanging (in-line) mounting
  • Non-insulated, silver brazed seam barrel ensures a secure fit and offers reliable performance
  • Suitable for use in a terminal block
Standard
UL and CSA
Sub_Brand
3M
Temperature_Rating
347 deg F
Type
Non-Insulated Block
Voltage Rating
600/1000 VAC
