3M 3M MNG14-8FX
3M MNG14-8FX
Kirby Risk #: 2374614
UPC: 05112858666, 051128586662, 00051128586662
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

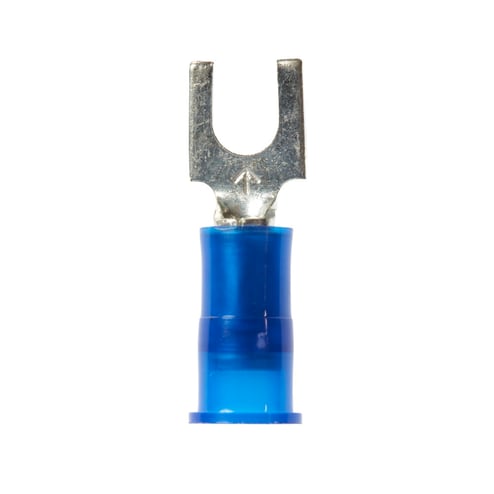

3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
NYLON INSULATED W/INSULATION GRIP
AD Description
Scotchlok™ 051128-58666 Standard Fork Terminal, 16 to 14 AWG Conductor, 0.91 in L, Butted Barrel, ETP Copper, Blue
Specifications
| Color |
Blue
|
|---|---|
| Conductor Type |
Insulated
|
| Conductor Size |
16 to 14 AWG
|
| Country of Origin |
US
|
| Dimensions |
0.34 in W x 0.03 in THK
|
| Length1 |
0.91 in
|
| Material |
ETP Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
-40 to 221 deg F
|
| Type |
Standard
|
| Voltage Rating |
600 to 1000 VAC
|
