3M 3M MVU18-6R/SX


Description

Industry Description

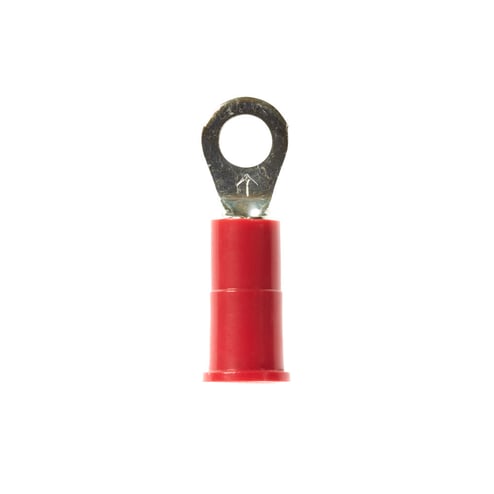

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

VINYL INSULATED BRAZED SEAM RING

AD Description

Scotchlok™ 051128-58814 Insulated Standard Ring Terminal, 22 to 18 AWG Conductor, 0.8 in L, Butted Seam Barrel, Copper, Red

Vendor Description

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance.

Specifications

Color
Red
Conductor Size
22 to 18 AWG
Country of Origin
USA
Finish
Tin Plated
Length1
0.8 in
Material
Copper
Special Features

  • 100 Terminals/Bottle
  • 500 Terminals/Case
  • Crimp termination
  • Free hanging (in-line) mounting
  • Funnel designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Red vinyl insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
Standard
UL and CSA
Sub_Brand
3M
Temperature_Rating
-40 to 221 deg F
Type
Insulated Standard
Voltage Rating
600/1000 VAC
