3M 3M MVU18-10RX
3M MVU18-10RX
Kirby Risk #: 2374565
UPC: 05112858853, 051128588536, 00051128588536
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

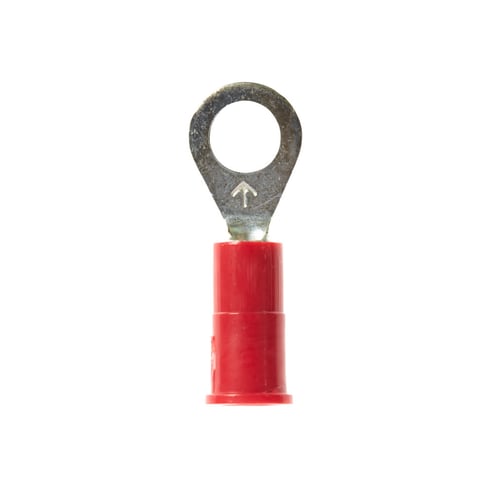

3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
VINYL INSULATED BRAZED SEAM RING
AD Description
Scotchlok™ 051128-58853 Standard Ring Tongue Terminal, 22 to 18 AWG Conductor, 0.9 in L, 0.07 in ID Butted Barrel, ETP Copper, Red
Specifications
| Color |
Red
|
|---|---|
| Conductor Size |
22 to 18 AWG
|
| Country of Origin |
USA
|
| Dimensions |
0.31 in W x 0.03 in THK
|
| Length1 |
0.9 in
|
| Material |
ETP Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
-40 to 221 deg F
|
| Type |
Standard
|
| Voltage Rating |
600 to 1000 VAC
|
