3M 3M MH10-10FLX


Description

Industry Description

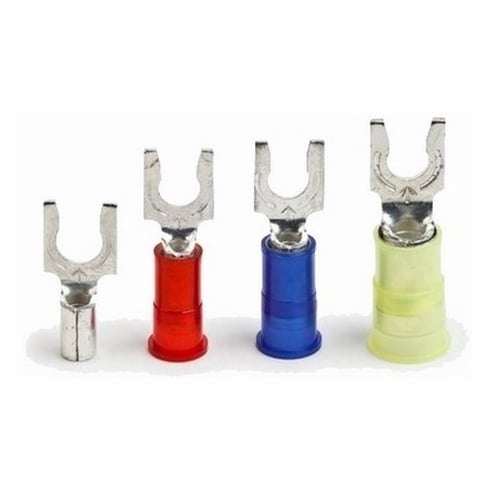

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

LOCKING FORK BRAZED SEAM HEAT

AD Description

Scotchlok™ 051128-58891 Locking Fork Terminal, 12 to 10 AWG Conductor, 1 in L, Brazed Barrel, ETP Copper, Yellow

Vendor Description

Heat shrink pre-insulated adhesive terminals, connectors and disconnects protect against the most challenging of environments, making the best moisture protection available. They offer several advantages over conventional unsealed products.

Specifications

Color
Yellow
Conductor Type
Heat Shrink
Conductor Size
12 to 10 AWG
Country of Origin
US
Dimensions
0.32 in W x 0.04 in THK
Length1
1 in
Material
ETP Copper
Special Features

  • Corrosion resistance - the adhesive lined heat shrink material, when properly crimped and shrunk, provides a seal that is resistant to water, salt, steam and other related contaminants
  • Durable heat shrink tubing - tough heat shrink tubing effectively resists abrasion, scoring, cut through and the effects of long term aging
  • Extra force is required to remove from stud, crimp connection
  • Improved mechanical performance - the adhesive lined heat shrink tubing adheres, when shrunk, to both the connector and the wire insulation, providing improved pullout strength and strain relief
  • The spring-like tongue locks in place around the stud even when mount screw is not tightened
  • Vinyl insulated
Standard
UL and CSA
Sub_Brand
3M
Temperature_Rating
221 deg F
Type
Locking
Voltage Rating
600 to 1000 VAC
