3M 3M 5810-B-2/0
3M 5810-B-2/0
Kirby Risk #: 2364235
UPC: 05400704775, 054007047759, 00054007047759
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

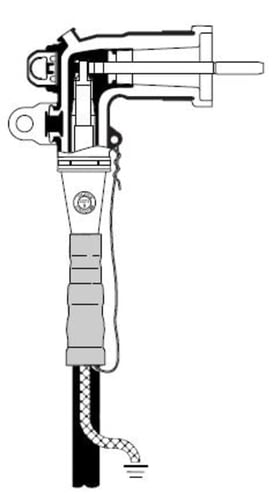

3M™ 5810 Series Industrial Loadbreak Elbow Kit is a fully shielded and insulated dead front termination. This kit is for connecting underground cable to transformers, switchgear and junctions that come with loadbreak bushings. It is designed for use on tape shield, wire shield, UniShield® and JCN types of cables. The elbow is peroxide cured EPDM.
Modified Industry Description
2/0 - 175 MILS - 15KV 200A - INDUSTRIAL LOADBREAK ELBOW CONNECTOR
AD Description
3M™ 054007-04775 5810 Industrial Loadbreak Elbow, 5 to 8 kV, 200 A, 2/0 to 3/0 AWG Conductor, 0.7 to 0.91 in Dia Insulation, EPDM
Vendor Description
3M™ 5810 series industrial loadbreak elbow kit is a fully shielded and insulated dead front termination. This kit is for connecting underground cable to transformers, switchgear and junctions that come with loadbreak bushings. It is designed for use on tape shield, wire shield, UniShield® and JCN types of cables. The elbow is peroxide cured EPDM. 3M™ 5810 series industrial loadbreak elbow kit includes an elbow body, loadbreak probe, probe installation tool, silicone lubricant, cold shrink jacketing tube, mastic strips, ground braid assembly, constant force spring and CC-3 cable cleaning pads. This kit is rated for 5 to 15 kV, 200 A applications.
Specifications
| Brand Name |
3M
|
|---|---|
| Country of Origin |
US
|
| Insulation |
100%-133%
|
| Insulation_Diameter_Range |
0.700-0.910 in
|
| Label_Description |
3M(TM) 200 AMP INDUSTRIAL LOADBREAK ELBOW?5810-B-2/0
|
| Package_Quantity |
1
|
| Size |
2/0 - 3/0 AWG
|
| Special Features |
|
| Sub_Brand |
3M
|
| Type |
Elbow
|
| Voltage Rating |
5kv - 8kv
|
