Southwire Southwire URD-TRI-1/0-BRENAU-500FT-ALUM

Name: Southwire URD-TRI-1/0-BRENAU-500FT-ALUM
Brand: Southwire
SKU: 2363635
Price: 2.96 USD
Availability: InStock

Southwire URD-TRI-1/0-BRENAU-500FT-ALUM

Kirby Risk #: 2363635

UPC: 03288659614, 032886596148, 00032886596148

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Southwire

Description

Industry Description

1/0 STR AL 600VUD TX BRENAU/YES 500 FT

Modified Industry Description

1/0 URD TRIPLEX ALUMINUM BRENAU 500 FT

AD Description

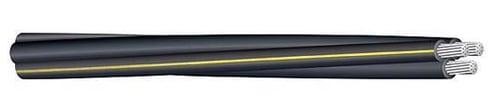

Southwire® 55415209 Triplex Secondary UD Service Entrance Cable, 600 VAC, (3) 1/0 AWG Stranded Aluminum Conductor, 500 ft L, Black/Yellow

Brand Name	Southwire
Color	Black
Conductor Material	Aluminum
Conductor Type	Stranded Aluminum
Conductor Size	1/0
Country of Origin	USA
Insulation_Material	Cross Linkable Polyethylene
Number Of Conductors	3
Outside_Diameter	1106
Package_Quantity	500
Special Features	215 A direct burial, 160 A in-duct ampacities 512 mil single phase nominal conductor diameter 80 mil insulation thickness Conductors are durably surface printed for identification Neutrals are triple yellow extruded stripe Two phase conductors and one neutral conductor are cabled together to produce the triplex cable configuration
Sub_Brand	Southwire
Type	URD
Voltage Rating	600
