Thomas & Betts Thomas & Betts RB2207M
Thomas & Betts RB2207M
Kirby Risk #: 2351431
UPC: 78621086270, 786210862705, 30786210862706
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

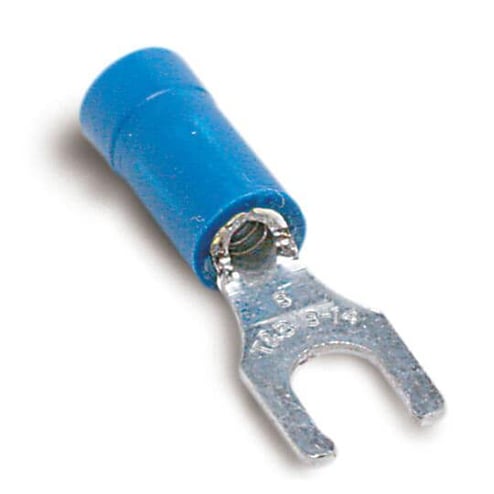

Vinyl Insulated Locking Fork Terminal, Length .97 Inches, Width .25 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, On Mylar Tape, 1,000 Pack
Modified Industry Description
TERMINAL BELT ASSY
AD Description
Sta-Kon® RB2207M Insulated Fork Terminal, 18 to 14 AWG Conductor, 0.97 in L, Copper, Blue
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Color |
Blue
|
|---|---|
| Conductor Size |
18 to 14 AWG
|
| Country of Origin |
US
|
| Finish |
Tin Plated
|
| Length1 |
0.97
|
| Material |
Copper
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Sta-Kon
|
| Temperature_Rating |
221
|
| Type |
Insulated Locking
|
| Voltage Rating |
600
|
