Thomas & Betts Thomas & Betts F8003
Thomas & Betts F8003
Kirby Risk #: 2351063
UPC: 78621033563, 786210335636, 00786210335636
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

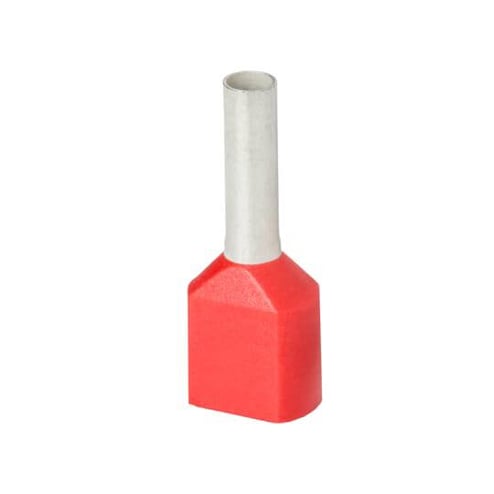

Polypropylene Insulated Twin Ferrule, Length .591 Inches/15mm, Pin Length .315 Inches/8mm, Pin Diameter .081 Inches/2.05mm, Base Diameter .201 Inches/5.1mm, Conductor Range 2x17 AWG/2x1.00mm2, Color Red, Copper, Tin Plated
Modified Industry Description
INS NYL TWIN FERRULE 2X17, 2X1.00 M
AD Description
Sta-Kon® F8003 F Series Insulated Wire Ferrule, 17 AWG Stranded Copper Conductor, 0.591 in L, Copper, Red
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Color |
Red
|
|---|---|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
17
|
| Country of Origin |
DE
|
| Finish |
Tin Plated
|
| Length1 |
0.591
|
| Material |
Copper
|
| Series |
F Series
|
| Special Features |
|
| Standard |
UL E489056
|
| Sub_Brand |
Sta-Kon
|
| Temperature_Rating |
105
|
| Type |
Insulated
|
| Voltage Rating |
300
|
