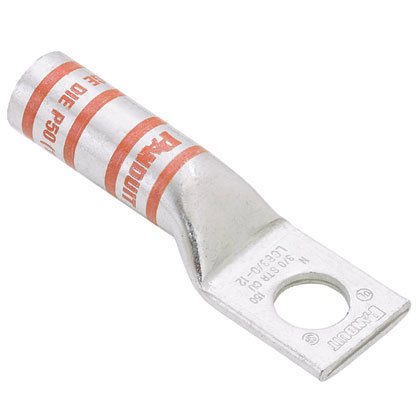

Panduit Panduit LCB6-10-L

Name: Panduit LCB6-10-L
Brand: Panduit
SKU: 2348351
Price: 4.30 USD
Availability: InStock

Panduit LCB6-10-L

Kirby Risk #: 2348351

UPC: 07498338236, 074983382361, 30074983382362, 00074983382361

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

One-hole, long barrel lug, #6 AWG wire, #10 stud hole.

Modified Industry Description

COPPER COMPRESSION LUG, 1 HOLE, #6

AD Description

Panduit® Pan-Lug™ LCB6-10-L 1-Hole Compression Lug, 6 AWG Stranded Copper Conductor, Die Code: P24, #10 Stud, Copper

Color	Blue
Conductor Type	Stranded Copper
Conductor Size	6
Country of Origin	MEX
Length1	4.7000
Material	Copper
Mounting	1 1/8
Series	LCB
Size	#6 Code
Special Features	Color coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments High conductivity seamless copper tube Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance Tin plated to inhibit corrosion
Standard	C22.2 No. 65-13, 486A-486B File #E52164
Sub_Brand	Panduit
Temperature_Rating	90
Type	1-Hole
Voltage Rating	35
