Ocal Ocal LR28-4X-G


Description

Industry Description

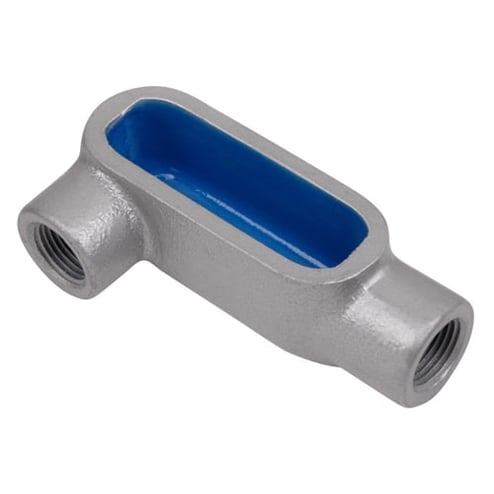

PVC Coated Conduit Body, LR Shape, Form 8 UL-4X, Size 3/4 Inch/21 Metric, Iron, Dark Gray

Modified Industry Description

3/4 IN PVC COATED LR CONDUIT BODY FORM 8 DARK GRAY

AD Description

Ocal® OCAL-BLUE® LR28-4X-G Type LR Conduit Body With Cover, 3/4 in Hub, Form 8 Form, 8 cu-in Capacity, Iron, PVC Coated

Vendor Description

With outstanding performance in corrosive environments, Ocal® PVC coated conduit and fittings extend the life of your electrical system for many years beyond the lifespan of standard rigid conduit systems. T&B® has removed certain "Only Ocal®" statements from its literature and advertising as part of the settlement of a lawsuit.

Specifications

Application
Act as pull outlets for conductors being installed
Brand Name
Ocal
Color
Dark Gray
Country of Origin
US
Finish
PVC Coated
Form
8
Hub_Size
3/4
Material
Iron
Special Features

  • Connect conduit sections
  • Double coated superior corrosion protection, bodies and covers coated inside and out with 0.002 in blue urethane, then exterior coated with a minimum of 0.04 in PVC
  • Make 90 deg bends in conduit runs
  • Provide for access to conductors for maintenance and future system changes
  • Provide openings for making splices and taps in conductors
  • Provide taps for branch conduit runs
  • PVC coated cast iron conduit body comes with mated cast iron cover, injection molded with an integral O-ring seal and stainless steel encapsulated screws
  • UL listed type 4X and NEMA 4X rating for excellent protection in wash down areas, as well as harsh outdoor environments exposed to moisture, rain, ice or snow
Standard
UL E2969, CSA
Sub_Brand
Ocal
Type
Type LR
Width_2
7.5000
