Description

Industry Description

3M™ Motor Lead Inline Splicing Kits 5311-5314 Series are designed for splicing motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 volts and less. The splice’s main component, the slip on splice cover, is made from EPDM rubber. A mastic strip is used for the moisture seal.

Modified Industry Description

MOTOR LEAD SPLICING KIT (3

AD Description

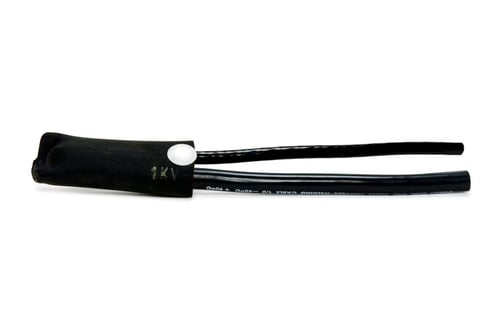

3M™ 5314 5300 Motor Lead Pigtail Splice Kit, 0 to 1000 VAC, 4/0 AWG to 500 kcmil Conductor, 12 to 13 in L Splice, EPDM Rubber

Vendor Description

3M™ 5300 Series motor lead inline splice kit is perfect to use with copper compression, 1-hole lugs. It is designed to splice motor lead cables to incoming feeder cables, including the accommodation of inline connections at 1000 VAC or less. The kit makes 3 splices and can be used on cables that can withstand a maximum temperature of 194 deg F (90 deg C).

Specifications

Color
Black
Country of Origin
US
Length1
14.3000
Operating_Temperature
90°C
Special Features

  • 1-1/4 in maximum bolt length
  • 1400 psi tensile strength
  • 365 V mil dielectric strength
  • 750% elongation
  • Easy re-entry, can be used on cables with a rated operating temperature of 90 deg C and an emergency overload rating of 130 deg C, to splice (insulate and seal) motor lead connections for 1000 VAC and less cables sized 16 AWG to 500 kcmil
  • Fast and simple installation
  • High dielectric constant stress control included with 5/8 kV kits for shielded feeder cables for minimizing size and electrical stress
  • No special tools required to install splice
  • No torches or heat source required
  • Polyethylene cable
  • Suitable for use with 30000 Series copper compression lugs or other UL listed copper lugs
  • THK walls to resist puncture and abrasion damage
Sub_Brand
3M
Type
Motor Lead Pigtail Splice
Voltage Rating
1k
