TPI TPI F2925120C


Description

Industry Description

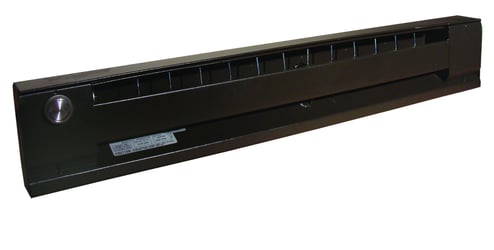

Electric Baseboard - Heavy-Duty Commercial Convection Heater, 208 V, 1 PH, 12 AMP, Steel Housing Material, Wall Mounting, Dimensions- 120 Length X 2-1/2 Depth X 6 Height IN, 2500 WTT, BTU Rating- 8532, Bronze

Modified Industry Description

2500W 208V 120IN COMMERCIAL

AD Description

TPI F2925120C 2900C 1-Phase Heavy Duty Standard Electric Baseboard Convection Heater, 8532 Btu/hr Capacity, 208 VAC, 2500 W Power Rating, Wall Mount

Specifications

Amperage Rating
12
Application
Indoor-Commercial/Some Industrial/Some Residential-208 volt
Color
Bankers Bronze
Country of Origin
US
Dimensions
120 in L x 6 in H x 2-1/2 in D
Finish
Powder Coated
Length1
124.0000
Material
Steel
Mounting
Wall
Mounting_Type
Wall
Phase
1
Power_Rating
2500
Series
2900C
Special Features

  • A full length wireway provided along the back of the heater
  • Bankers bronze with stainless steel heating element and aluminum fins
  • Heater can be mounted to the wall by using the key hole knockouts every 4 in at the back of the heater
  • Optional in-built thermostats field installed in the junction box
  • Over temperature thermal limit extends entire length of heated area
  • Powder coated 22 ga steel front with 20 ga junction boxes located on each end of the heater - junction boxes contain quick connect cable clamps and 6 in ground lead wires
  • Standard inlet and outlet wireguards
Standard
cETLus Listed
Sub_Brand
TPI
Type
1-Phase Heavy Duty Standard
Voltage Rating
208
