Lithonia Lighting Lithonia Lighting LHQM S W 3 R HO R0


Description

Industry Description

Quantum thermoplastic exit/unit combo, Stencil Face, White, Single with extra faceplate and color panel for field conversion to double face, Red, High output lead-calcium battery, Less lamp heads, SKU - 144X4C

Modified Industry Description

2 Headed LED Exit Combo Single WITH Extra Faceplate Red Letters High Output BatterY

AD Description

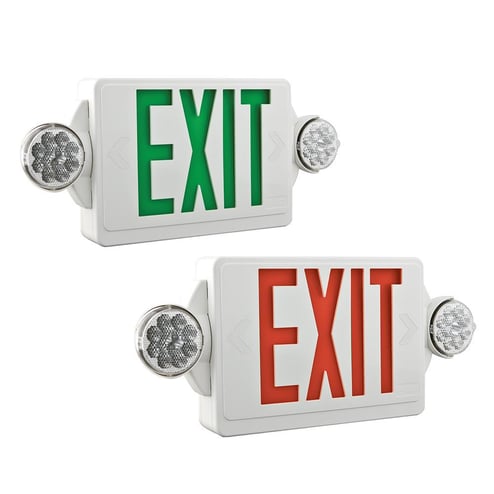

Lithonia Lighting® QUANTUM® LHQM S W 3 R HO R0 OS Stencil Face Emergency Exit Unit Combo, Incandescent/LED Lamp, 3.3 W Fixture, 120/277 VAC, White Housing, EXIT Legend

Specifications

Amperage Rating
0.23
Application
Emergency and Safety
Average_Life
10
Background_Color
White
Battery_Runtime
90 min
Brand Name
Lithonia Lighting
Color
White
Construction
New Construction,Remodel
Country of Origin
MX
Environmental_Conditions
Indoor,Outdoor
Finish
Matte
Fixture_Type
Emergency Exit Unit (aka Combo)
Housing_Color
White
Lamp_Included
False
Lamp_Type
LED/Incandescent
Lamp_Wattage
5.4
Legend
EXIT
Letter_Color
Red
Material
Thermoplastic
Mounting
Surface, Wall
Number_Of_Lamps
2
Power_Source
Lead Acid Battery
Special Features

  • Attractive, less than 10 in tall, streamlined design is great for above the door applications and other tight fits
  • Conduit entry knockout for 1/2 in flexible conduit, J-box pattern on back panel, stencil face, red letter
  • Engineering grade thermoplastic housing is impact-resistant, scratch-resistant and corrosion proof
  • Faceplate and back cover are interchangeable on housing
  • High output version with remote lamps are ideal for outdoor emergency egress lighting
  • High-output lead calcium battery, less lamp heads
  • Low energy consumption only 3.3 W, custom microchip charger, developed by emergency systems
  • Positive snap-fit tabs hold faceplate securely, yet are easily removable for lamp compartment access
  • Provides increased reliability and maximizes battery life, AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge
  • Rugged unibody housing snaps together with no additional fasteners, faceplate and back cover are interchangeable on housing
  • Sealed, maintenance free lead-acid (SLA) battery standard delivers 90 min capacity to emergency lamps two-rate regulated charger minimizes energy consumption and provides low operating costs
  • Suitable for applications requiring both exit sign and unit equipment
  • Thermal protection senses circuitry temperature range and maintenance, top, end or back mounting, housing snaps to canopy with four positive locking tabs, cam locking pin secures housing to canopy, easily removed mounting knockouts
  • Two 5.4 W T5 wedge-base krypton lamps with multi-faceted reflector and acrylic lenses to provide superior optical control
  • Typical life of LED lamp is 10 years
  • UL94 VAC-0 flame rating
  • Uniform graphical illumination without shadows or hot spots, letters 6 in H with 3/4 in stroke with 100 ft viewing distance rating, based upon UL924 standards
  • Unique swivel and point arrangement permits full range adjustment in lamp head direction, typical life of the exit LED lamp is 10 years, based on continuous operation
  • Universal, directional chevron inserts are easily removed and reinserted
  • UV-stable white resin resists discoloration from natural and man-made light sources
Standard
NOM, UL
Sub_Brand
Lithonia Lighting
Type
Stencil Face
Voltage Rating
120/277
Wattage
5
