Panduit Panduit LCMA35-8-C
Panduit LCMA35-8-C
Kirby Risk #: 2335800
UPC: 07498376940, 074983769407, 30074983769408, 00074983769407
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

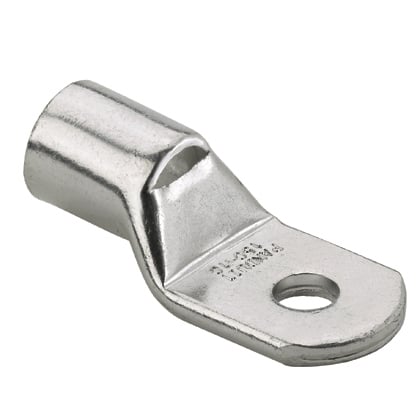

One-hole, metric conductor, standard barrel with window lug, 35mm² wire, M8 stud hole.
Modified Industry Description
Copper Compression Metric Lug, 1
AD Description
Panduit® Pan-Lug™ LCMA35-8-C 1-Hole Metric Lug Compression Connector, 35 sq-mm Class 2, 25 sq-mm Stranded Copper Conductor, Die Code: P29, M8 Stud, Tin Plated Copper
Specifications
| Amperage Rating |
NA
|
|---|---|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
35, 25
|
| Country of Origin |
IND
|
| Length1 |
5.8000
|
| Material |
Copper
|
| Series |
LCMA
|
| Size |
35mm² Class 2
|
| Special Features |
|
| Standard |
Meets EN 61238-1:2003/IEC 61238-1:2003 Class B
|
| Sub_Brand |
Panduit
|
| Temperature_Rating |
90
|
| Type |
1-Hole Metric
|
| Voltage Rating |
35
|
