3M 3M MNG18-6FBX
3M MNG18-6FBX
Kirby Risk #: 2333867
UPC: 05112858652, 051128586525, 00051128586525, 00054007220138
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

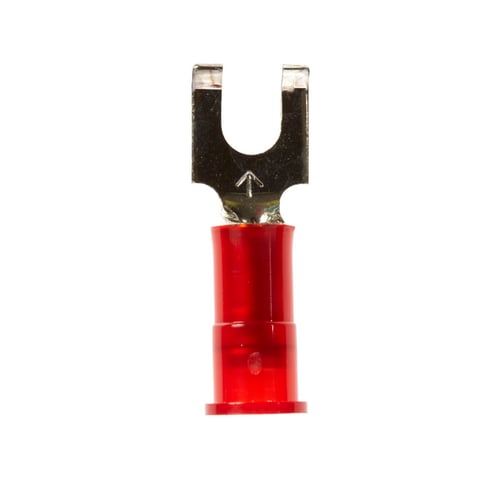

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
NYLON INSULATED W/INSULATION GRIP
AD Description
Scotchlok™ 051128-58652 Insulated Block Fork Terminal, 22 to 18 AWG Conductor, 0.84 in L, Butted Seam Barrel, Copper, Red
Specifications
| Color |
Red
|
|---|---|
| Conductor Type |
Stranded Copper
|
| Conductor Size |
22 to 18 AWG
|
| Country of Origin |
US
|
| Finish |
Electro-Tin Plated
|
| Length1 |
0.84 in
|
| Material |
Copper
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Temperature_Rating |
-40 to 221 deg F
|
| Type |
Insulated Block
|
| Voltage Rating |
600/1000 VAC
|
