O-Z/Gedney O-Z/Gedney GUALB-200
O-Z/Gedney GUALB-200
Kirby Risk #: 2330293
UPC: 78312624735, 783126247350, 00783126247350
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: O-Z/Gedney
Description
Industry Description

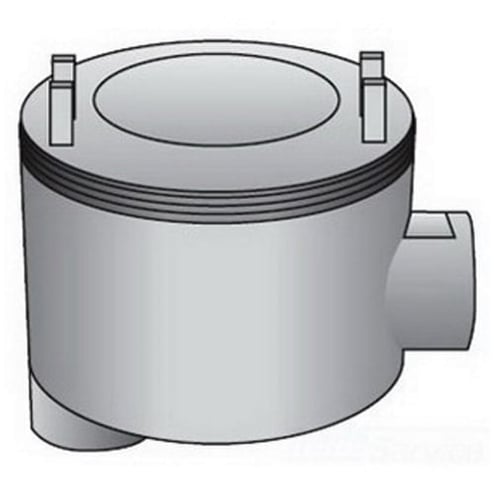

OZ-Gedney Type GUALB Conduit Outlet Box, Number Of Outlet: 2, Malleable Iron Body/Cover, Size: 2 IN, Cable Entry: (2) 2 IN Hubs, 75 CU-IN Capacity, No, 5-1/8 IN Cover Opening, Finish: Zinc Electroplated With Aluminum Enamel, 5-5/8 IN Width, 4-1/8 IN Depth, 5-5/8 IN Height, NEMA Rating: NEMA 4, 7CD, 9EFG, Third Party Certification: UL File Number E-30513, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 020945, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Military Specification Mil-F-28675, Federal Specification A-A-50563, For Rigid Conduit And IMC
Modified Industry Description
2 IN Hazordous Location LB Conduit Box
Specifications
| Application |
For Rigid Conduit And IMC
|
|---|---|
| Country of Origin |
MX
|
| Length1 |
6.9000
|
| Material |
Malleable Malleable
|
| Size |
2
|
| Special Features |
GUA conduit outlet boxes are for use in hazardous locations to provide for change in conduit direction, access to conductors, and as pull and splice boxes; They feature internally threaded bodies and cast in brackets on the cover and are suitable for use wet locations; Optional hot dip or mechanical galvanized finish available; Malleable iron bodies have high tensile strength and ductility, and provide great resistance to corrosion, impact, and shock; Included O-ring gasket provides NEMA 4 rating; Smooth hub bushings protect insulation when pulling conductors; Cast-in brackets on cover for use with breaker-bar tools for tightening/loosening; Tapered threaded hubs (NPT); Hub covers, fixture canopies, sealing covers and threaded extensions available; Functions as a 25 PCT fill sealing fitting when used with GUASC sealing cover
|
| Standard |
Third Party Certification: UL File Number E-30513, Class I, Division 1, 2, Groups C, D, Class I, Zone 1, 2, Groups IIA, IIB, Class II, Division 1, 2, Groups E, F, G, Class III, CSA 020945, Applicable Third Party Standards: UL 886, CSA C22.2 Number 30, NEC Articles 500-503 And 505, Military Specification Mil-F-28675, Federal Specification A-A-50563
|
| Sub_Brand |
O-Z/Gedney
|
| Type |
Type GUALB Conduit Outlet Box
|
