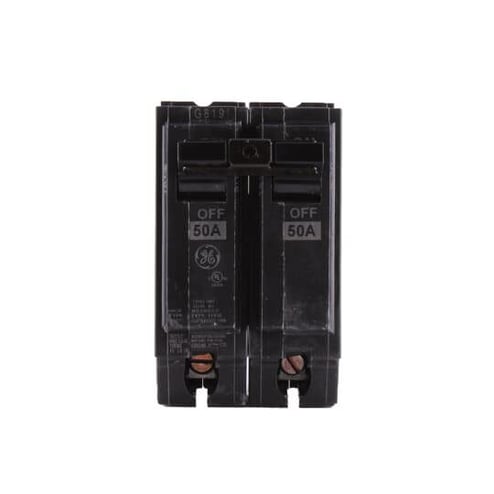

Ge Industrial GE Industrial THQL2115HID


Description

Industry Description

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications. 5HID Amps 15 A 5HID0093

AD Description

GE THQL2115HID Q-Line Type THQL Residential Circuit Breaker, 120/240 VAC, 15 A, 10 kA Interrupt, 2 Poles, LI/Non-Interchangeable Fixed Thermal Magnetic Trip

Vendor Description

Q-Line circuit breakers are 1 in W per pole, compact, thermal magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q-Line used for bolting to the bus connections of load centers and lighting panels. All Q-Line circuit breakers feature quick-make/quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q-Line breakers are available in 1, 2 and 3-pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Specifications

Application
Electrical distribution and Control
Country of Origin
UKN
Length1
2.0000
Special Features

  • 10 kA at 120 VAC, 10 kA at 120/240 VAC interrupt rating
  • 14 to 8 AWG Cu, 12 to 8 AWG Al wire range
  • Copper stabs, tin plated for corrosion resistance, make the connection reliable and permanent
  • Heat resistant thermoset cases and covers add stability and structural rigidity
  • HID breakers have been designed to handle the current and voltage spikes that result when gaseous discharge lamps, including fluorescent and HID lamps, are switched on and off
  • The dedicated calibration screw is cemented (not simply papered over) to prevent shifting, the result is stable calibration for optimum trip performance
  • Trips are easy to spot because handles trip to the center position
Standard
True
Sub_Brand
GE Industrial Solution
