O-Z/Gedney O-Z/Gedney 4Q400LT


Description

Industry Description

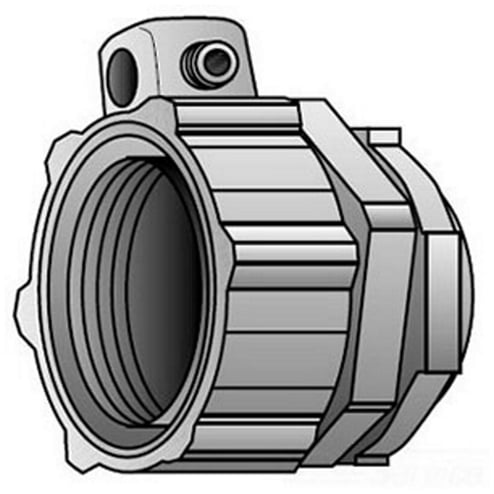

OZ-Gedney Ground-Tite Type 4Q-LT Grounding Liquid Tight Straight Connector With Lug, Size: 4 IN, Connection: Tapered MNPT Hub, Conductor Range: 1 - 4/0 AWG, Malleable Iron Body and Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, Insulated Throat, Hazardous Location, 6-1/2 IN Width, 3-1/2 IN Height, 3-5/8 IN Turning Radius Gland Nut, Third Party Certification: UL File Number E-24264, CSA 9795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-406E, NEMA : FB-1, Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, For Liquidtight Flexible Metal Conduit

Modified Industry Description

4 IN STR CONN LFMC W/LUG INSUL

Specifications

Application
For Liquidtight Flexible Metal Conduit
Connection
Tapered MNPT Hub
Country of Origin
MX
Dimensions
3-1/2 in H x 6-1/2 in W
Environmental_Conditions
Hazardous Location
Finish
Zinc Electroplated
Insulation
Insulated Throat
Length1
6.2000
Material
Malleable Iron
NEMA_Rating
NEMA 4
Series
4Q-LT
Size
4
Special Features

  • Bonding wedge locknuts are recommended in hazardous locations
  • Capable of withstanding high ground fault
  • Compact, slim diameter with small turning radius
  • Grounding lug is cast as an integral part of malleable iron gland nut
  • Inspection windows in ferrule to ensure full conduit engagement
  • Intrinsically safe
  • Long ferrule prevents pullout and tight bend conduit "pop-out"
  • Tapered threaded male NPT hub
Standard
Third Party Certification: UL File Number E-24264, CSA 9795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-406E, NEMA : FB-1, Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
Type
Concretetight Liquidtight Oiltight Positive Grounding Raintight
