Hubbell Hubbell 7464N
Hubbell 7464N
Kirby Risk #: 2319739
UPC: 78178663850, 781786638501, 00781786638501
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Locking Devices, Bryant Midget Locking, Industrial, Female ConnectorBody, 15A 125V, 2-Pole 2-Wire Non-Grounding, ML-1R, Screw Terminal,Black and White
Modified Industry Description
LKG CONN, MIDGET, 15A 125V, ML-1R
AD Description

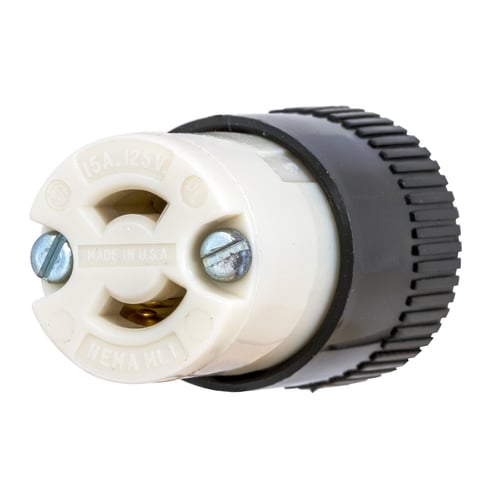

Bryant Electric Tech-Spec® 7464N Female Heavy Duty Insulated Midget Non-Grounding Standard Locking Connector With Non-Metallic Cord Grip, 125 VAC, 15 A, 2 Poles, 2 Wires, Black/White
Specifications
| Amperage Rating |
15
|
|---|---|
| Application |
Heavy Duty Industrial
|
| Color |
White
|
| Connection |
Screw Terminals
|
| Country of Origin |
US
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
Insulated Body
|
| Length1 |
0.9000
|
| Material |
Elastomer
|
| Mounting |
Cord Mounted
|
| NEMA_Rating |
ML-1R
|
| Number Of Conductors |
2-Wire Non-Grounding
|
| Number_Of_Poles |
2
|
| Size |
Midget Locking
|
| Special Features |
|
| Standard |
UL 498, CSA
|
| Sub_Brand |
Bryant
|
| Temperature_Rating |
Maximum Continuous: 75?° C; Minimum Continuous: -40?° C w/o impact, -25?° with impact.
|
| Type |
Insulgrip
|
| Voltage Rating |
125
|
