Thomas & Betts Thomas & Betts F2053


Description

Industry Description

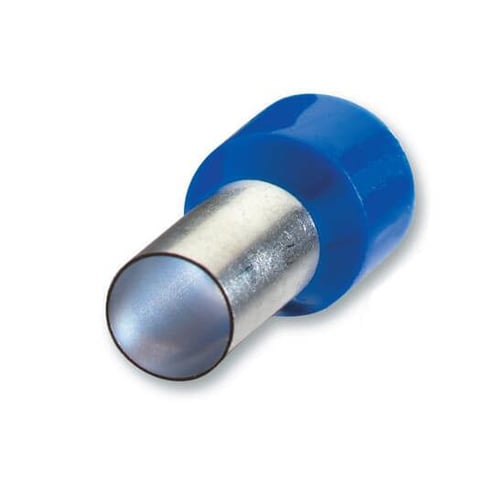

Polypropylene-Insulated Ferrule, Total Length 1.417 Inches/36mm, Pin Length .787 Inches/20mm, Pin Diameter .413 Inches/10.5mm, Base Diameter .591 Inches/15.0mm, Wire Range 1/0 AWG/50.00mm2, Color Blue, Copper, Tin Plated

AD Description

Sta-Kon® F2053 Insulated Wire Ferrule, 1/0 AWG Stranded Copper Conductor, 1.417 in L, Copper, Blue

Vendor Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat-shrinkable terminals, splices and disconnects.

Specifications

Color
Blue
Conductor Type
Stranded Copper
Conductor Size
1/0
Country of Origin
DE
Finish
Tin Plated
Length1
1.417
Material
Copper
Series
F Series
Special Features

  • Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
  • Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
  • Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
  • Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
  • Made of high conductivity copper
  • Meets emerging global standards, requiring wire to metric style terminal block installations to be terminated with a "pin" style terminal
  • Polypropylene insulated
  • Recommended tool ERG4
Standard
UL E489056
Temperature_Rating
105
Type
Insulated
Voltage Rating
300
