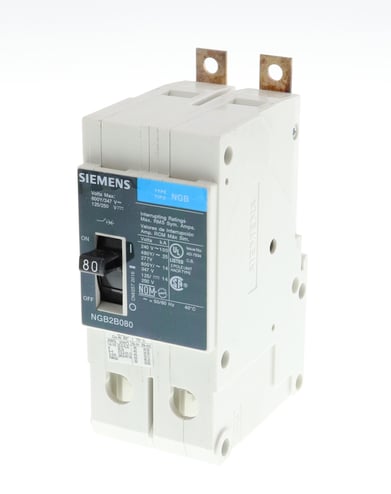

Siemens Siemens NGB2B080B
Siemens NGB2B080B
Kirby Risk #: 2311959
UPC: 78364341420, 783643414204, 00783643414204
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 80A 2-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 2 x 5.4 x 2.8.
Modified Industry Description
BREAKER NGB 2P 80A 600V 14KA LD LUG
AD Description
Siemens NGB2B080B Low Voltage Molded Case Circuit Breaker, 600Y/347/480Y/277 VAC, 80 A, 14 to 25 kA Interrupt, 2 Poles, Thermal Magnetic/LI Trip
Vendor Description
Siemens Panelboard mounting circuit breakers are designed for quick installation in Siemens panelboards and switchboards. The interlocking features allow for one screw installation which mounts the breaker line end bus tab to the panelboard bus bar. Ideally suited for use in lighting panels, these breakers offer HACR ratings as well as Switching Duty ratings for 15 to 20 A and HID ratings from 15 to 50 A.
Specifications
| Amperage Rating |
80
|
|---|---|
| Brand Name |
Siemens
|
| Country of Origin |
MX
|
| Frame |
NGB
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
14 to 25
|
| Number_Of_Poles |
2
|
| Phase |
1-Phase
|
| Special Features |
|
| Standard |
UL/CSA/IEC/NOM
|
| Sub_Brand |
Siemens
|
| Trip_Type |
Thermal Magnetic/LI
|
| Type |
Low Voltage
|
| Voltage Rating |
600Y/347/480Y/277 VAC
|
| Width_2 |
6.9000
|
| Width_3 |
40.0000
|
| Width_4 |
40.0000
|
