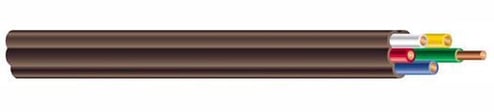

Southwire Southwire THERM 20/2-500 69207901


Description

Industry Description

20 SOL CU 2/C T-STAT WIRE UL CL2 BROWN 500 FT

Modified Industry Description

20/2 SOL CU SIMPULL T-STAT (UL) CL2

AD Description

Southwire® 69207901 Class 2 Thermostat Wire, 150 VAC, (2) 20 AWG Solid Copper Conductor, 500 ft L

Vendor Description

At Southwire®, we continue to create quality, long lasting products for the HVAC industry. Our latest innovation, SIMpull® Tstat™ wire, combines traditional thermostat wire with patented SIM Technology® for faster installs and cleaner handling. Designed to be easier to pull, easier to strip and more resistant to abrasion, it makes tough retrofit jobs more of a breeze. And, the SIMpull® Tstat™ advantage is available at the same price as our traditional thermostat wire.

Specifications

Color
Brown
Conductor Type
Solid Copper
Conductor Size
20
Country of Origin
UKN
Length1
500
Number Of Conductors
2
Outside_Diameter
1180
Special Features

  • 10.73 Ohm/1000 ft DC resistance per conductor at 20 deg C (nom)
  • 14 mil insulation thickness
  • 22 pF/ft capacitance between conductors at 1 kHz (nom)
  • Conductors are covered with a brown PVC jacket using sim (SlikQwik® infused Membrane) for easier pulling resulting in easier installation, ripcord
  • Red, white conductor colors
  • Solid copper conductors with 6 mil of PVC insulation
  • Vertical tray flame test (FT-1)
Sub_Brand
Southwire
Temperature_Rating
-20 to 60
Type
Class 2
Voltage Rating
150
