Southwire Southwire SJEOOW-16/2-BLACK-250
Southwire SJEOOW-16/2-BLACK-250
Kirby Risk #: 2308234
UPC: 03288603980, 032886039805, 00032886039805
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
16-26 CU 2/C WHITE/BLACK SJEOOW (TPE/SJTOOW) BLACK 105C 300V POLY 250 FT
Modified Industry Description
16 2/C SJEOOW BLACK CORD
AD Description
Seoprene® 55049503 Type SJEOOW Portable Cord, 300 VAC, (2) 16 AWG Bare Stranded Copper Conductor, 250 ft L
Vendor Description

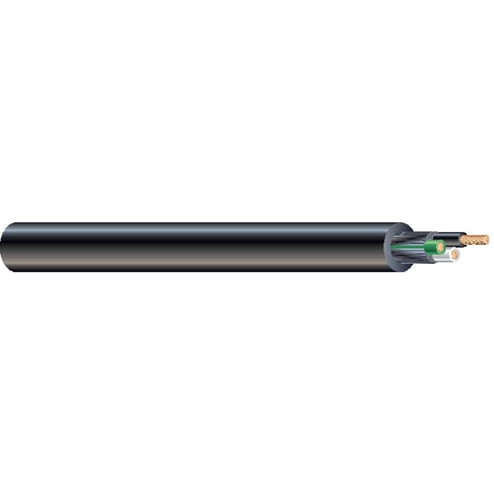

Southwire type SJEOOW flexible Cords are manufactured using sizes 18 AWG though 10 AWG bare flexible stranded class K copper conductors per ASTM B-174, and heat, moisture and oil resistant 105degC color-coded TPE insulation. The insulated conductors are cabled with non-wicking polypropylene fillers, with a tissue-paper separator wrapped around the assembly to promote easier removal of the jacket. A heat, moisture and oil resistant flexible TPE jacket is extruded over the assembly to complete the construction. Some sizes may be subject to minimum order quantity.
Specifications
| Amperage Rating |
13
|
|---|---|
| Application |
FLEXCORD
|
| Brand Name |
Southwire
|
| Color |
Black
|
| Conductor Material |
Copper
|
| Conductor Type |
Bare Stranded Copper
|
| Conductor Size |
16 AWG
|
| Construction |
TPE JACKET
|
| Core |
16
|
| Country of Origin |
USA
|
| Functions |
N/A
|
| Insulation_Material |
TPE
|
| Jacket_Material |
TPE
|
| Number Of Conductors |
2
|
| Number_Of_Outlets |
N/A
|
| Outside_Diameter |
0.31
|
| Package_Quantity |
250
|
| Plug_Type |
N/A
|
| Special Features |
|
| Standard |
UL62
|
| Sub_Brand |
Southwire
|
| Type |
SJEOOW
|
| Voltage Rating |
300
|
