3M 3M 5642
3M 5642
Kirby Risk #: 2302418
UPC: 05400711970, 054007119708, 00054007119708
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

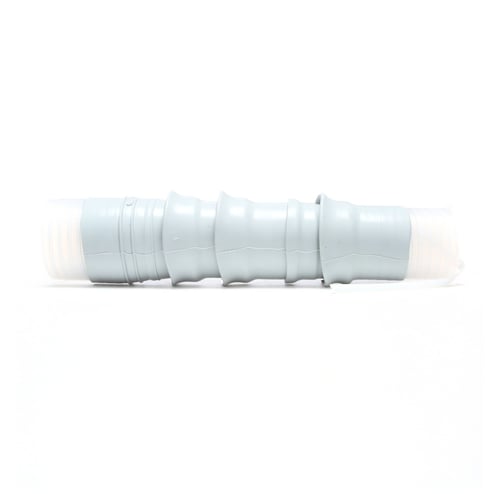

3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
Modified Industry Description
COLD SHRINK TERMINATION KIT 4 SKIRT
AD Description
3M™ 054007-11970 QT-II 5640 Cold Shrink Insulated Termination Kit, For Use With Jacketed Concentric Neutral Cable, Silicone Rubber
Specifications
| Application |
Outdoor
|
|---|---|
| Brand Name |
3M
|
| Cable_Type |
Jacketed Concentric Neutral (JCN)
|
| Conductor Size |
250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG
|
| Country of Origin |
US
|
| Label_Description |
3M(TM) COLD SHRINK OUTDOOR TERMINATION KIT 5642, 15 KV, 0.84-1.38 IN (21-35 MM) CABLE INSULATION O.D.
|
| Operating_Voltage |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
IEEE
|
| Sub_Brand |
3M
|
| Type |
QT-II
|
| Voltage Rating |
15k
|
