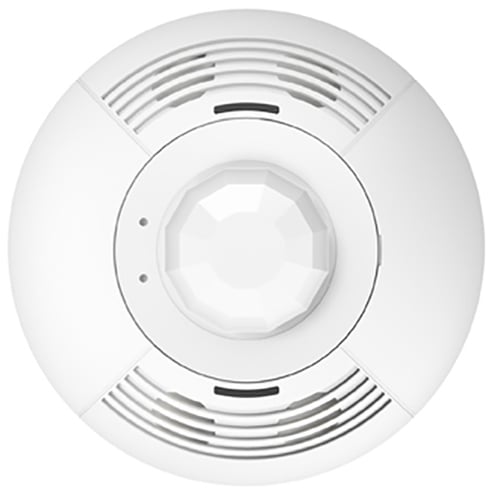

Lutron Lutron LOS-CDT-2000R-WH


Description

Industry Description

LOS Series CLNG-mount Occupancy Sensor, Dual Technology self-adaptive with additional contact closure output, relay module option, 20-24VDC, 2000 FT coverage, 360 degree field of view in white

Modified Industry Description

24V OCCUPANCY SENSOR, 2000 FT SENSING RANGE

AD Description

Lutron® LOS-CDT-2000R-WH Occupancy Sensor, 20 to 24 VDC, Passive/Ultrasonic Infrared Sensor, 2000 sq-ft Coverage, 360 deg Viewing, Ceiling Mount

Vendor Description

The LOS-CDT series dual technology ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. The technology eliminates manual sensitivity and timer adjustments during installation and over the life of the product.

Specifications

Amperage Rating
33
Application
Lighting Control
Body
20 to 24 VDC
Brand Name
Lutron
Color
White
Control_Output
20 to 24
Country of Origin
CN
Coverage1
2000
Enclosure
Plastic
Environmental_Conditions
Relative humidity: less than 95%, non-condensing, For indoor use only
Material
Plastic
Mounting
Ceiling Mount
Mounting_Type
Ceiling
Operating_Cycles
Relative humidity less than 95 %, non-condensing. For indoor use only
Operating_Temperature
0 to 40 degrees Celsius
Output
20-24VDC
Sensing_Distance
2000ft2 (186m2)
Sensor
UL, cUL
Size
4.5 in (114mm) X 1.4in (38mm)
Special Features

  • 500 to 2000 sq-ft coverage when mounted on an 8 to 12 ft ceiling
  • Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system
  • Combines both ultrasonic (US) motion detection for maximum sensitivity and passive infrared (PIR) motion detection for false triggering immunity
  • Injection molded plastic
  • Intelligent, continually adapting sensor
  • Non-volatile memory, settings saved in protected memory are not lost during power outages
  • Snap locks to ceiling mounted cover plate
  • Suited for complex environments that are difficult to control with single technology sensors
  • The self-adapting internal microprocessor analyzes the composite sum of both signals to eliminate time-consuming adjustments and callbacks found in non-intelligent sensors
  • Ultrasonic (US) combined with passive infrared (PIR) sensing provide high sensitivity, high noise immunity and excellent false tripping immunity
Standard
UL, CUL
Sub_Brand
Lutron
Supply_Voltage
20 to 24 DC
Temperature_Rating
32 to 104
Type
Dual Technology Occupancy/Vacancy Sensor
Voltage Rating
20 to 24
