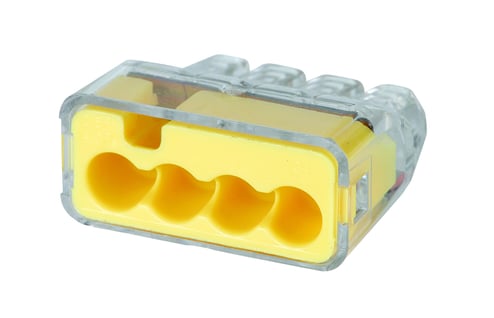

Ideal Ideal 30-1634


Description

Industry Description

IDEAL, Wire Connector, In-Sure, Push-In, Size: 0.780 IN Length X 0.820 IN Width X 0.380 IN Height, Wire Size: #12 AWG - #20 AWG Solid, #12 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand) Stranded, #14 AWG - #18 AWG (19 Strand Or Less) Stranded (Tin Bonded), Connection: 4 Ports, Color: Yellow, Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting Fixtures, Temperature Rating: 105 DEG C Shell Rated, Wire Type: Solid, Stranded, Stranded (Tin Bonded), Model: 34

Modified Industry Description

12AWG PUSH-IN,4-PORT,5000 BOX

AD Description

IDEAL® In-Sure™ 30-1634 Push-In Wire Connector, 20 to 12 AWG, 18 to 12 AWG, 18 to 14 AWG Solid/Stranded/Tin-Bonded Wire, Nylon/Polycarbonate

Vendor Description

The In-Sure™ push-in wire connector from IDEAL®. The fastest, easiest, no-twist push-in connector. Perfect for OEM lighting manufacturing, prefabricated wiring systems and other OEM and branch circuit wiring applications. The clear polycarbonate housing allows visual verification of every connection. Simply glide the wire in the low insertion force makes it easy. In-Sure™ also allows removal of the wire after the connection has been established. UL Listed 94 D-Z, CSA Certified, and rated to 600 VAC and 105 deg C. In-Sure™ saves time and improves productivity while perfecting connections.

Specifications

Application
For Grounding And Bonding Applications
Color
Yellow
Connection
4 Ports
Conductor Size
#12 AWG - #20 AWG Solid, #12 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand) Stranded, #14 AWG - #18 AWG (19 Strand Or Less) Stranded (Tin Bonded)
Country of Origin
USA
Dimensions
0.78 in L x 0.82 in W x 0.38 in H
Finish
Tin Plated
Length1
14.5000
Material
Nylon/Polycarbonate
Size
0.780 IN Length X 0.820 IN Width X 0.380 IN Height
Special Features

  • 20 to 12 AWG solid, 16 to 12 AWG (19 strand or less) 18 AWG (7 strand) stranded, 18 to 14 AWG (19 strand or less) stranded (tin bonded)
  • 600 VAC maximum building wire, 1000 VAC maximum signs and lighting fixtures
  • Accepts any combination of 12 to 18 AWG solid or tin bonded copper conductors
  • Built-in strip length gauge
  • Clear shell gives visual verification of connection
  • Color coded for easy identification
  • Compact size makes installation easy
  • Electrolytic tin plated copper bus system
  • Ground rating eliminates need for special "ground" connector
  • Low insertion force for fast and easy connections
  • No twist connection reduces repetitive motion fatigue
  • Stainless steel inserts restrict pull-out
  • Tough, flame-retardant shell rated at 105 deg C
Standard
CSA C22.2 #188, 486C/467 UL Listed, RoHS
Sub_Brand
Ideal
Temperature_Rating
221
Type
Push-In
Voltage Rating
600
