3M 3M MV10-10RK
3M MV10-10RK
Kirby Risk #: 2299593
UPC: 05400701923, 054007019237, 00054007019237
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

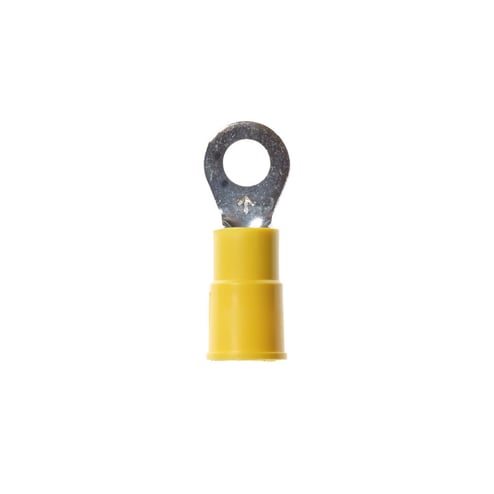

3M™ Scotchlok™ Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
VINYL INSULATED BRAZED SEAM RING
AD Description
Scotchlok™ 054007-01923 Standard Ring Tongue Terminal, 12 to 10 AWG Conductor, 1.03 in L, 0.135 in ID x 0.25 in L Brazed Barrel, ETP Copper, Yellow
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Yellow
|
| Conductor Size |
12 to 10 AWG
|
| Country of Origin |
US
|
| Label_Description |
VINYL INSULATED BRAZED SEAM RING TONGUE TERMINAL
|
| Material |
ETP Copper
|
| Operating_Voltage |
500 per bulk box
|
| Package_Quantity |
500
|
| Special Features |
|
| Standard |
UL and CSA
|
| Stud_Size |
#10
|
| Sub_Brand |
3M
|
| Terminal_Size |
12 - 10 AWG
|
| Type |
Standard
|
| Voltage Rating |
600 to 1000 VAC
|
