Panduit Panduit LAA250-12-5

Name: Panduit LAA250-12-5
Brand: Panduit
SKU: 2299399
Price: 30.95 USD
Availability: InStock

Panduit LAA250-12-5

Kirby Risk #: 2299399

UPC: 07498391046, 074983910465, 30074983910466, 00074983910465

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

One-hole, aluminum, long barrel, 250 kcmil, 1/2 (12.7mm) stud hole.

Modified Industry Description

250 MCM 1/2 IN 1 HOLE AL COMP LUG

AD Description

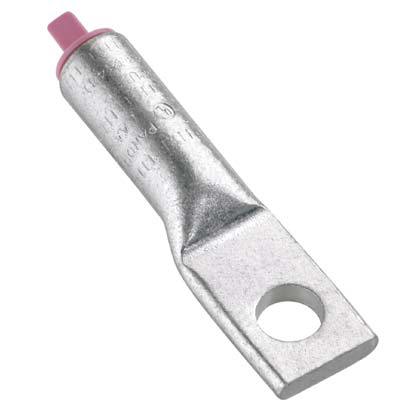

Panduit® Pan-Lug™ LAA250-12-5 LLA 1-Hole Compression Lug, 250 kcmil Aluminum/Copper Conductor, Die Code P71, 1/2 in Stud, Tin Plated Aluminum

Brand Name	Panduit
Color	Red
Conductor Material	Aluminum - Copper
Conductor Size	250
Country of Origin	MUL
Material	Tin Plated Aluminum
Mounting	1 3/4
Number_Of_Holes	1
Package_Quantity	1
Size	250 kcmil Code
Special Features	Color-coded end plug and Panduit and specified competitor die index numbers marked on barrel for proper crimp die selection Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments Factory pre-filled with joint compound and sealed with easy pull-out end plug to inhibit corrosion For use with stranded aluminum or copper code conductors Manufactured from high conductivity thick wall wrought aluminum Tin-plated to inhibit corrosion
Standard	cULus/UL/CSA
Stud_Size	1/2
Sub_Brand	Panduit
Temperature_Rating	90
Type	1-Hole
Voltage Rating	35
