TPI TPI RPH240A


Description

Industry Description

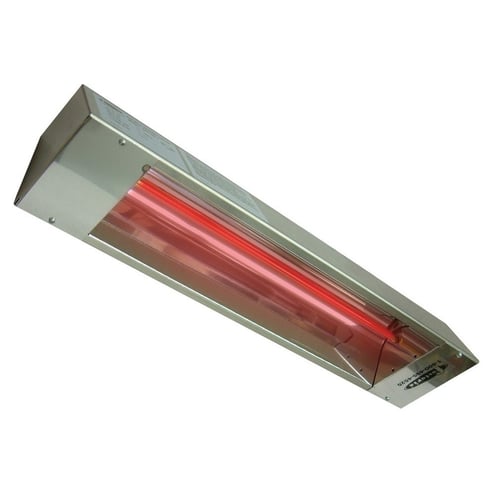

Electric Infrared Heater, Fostoria, 1600 WTT, 240 V, 6.7 AMP, 1 PH, Stainless Steel Housing, Dimensions- 24 Length X 5-3/8 Width X 4-1/2 Height IN, BTU Rating- 5461, RPH Series

Modified Industry Description

1600W 240V Outdoor Rated SS

AD Description

TPI Fostoria RPH240A RPH 1 Phase Electric Infrared Heater, 5461 Btu/hr Capacity, 240 VAC, 1.6 kW Power Rating

Specifications

Amperage Rating
6.7
Application
Indoor/Outdoor-Commercial/Industrial/Food Service
Beam_Pattern
30 deg Symmetrical
Brand Name
TPI
Country of Origin
US
DimensionsInches
24 Length X 5-3/8 Width X 4-1/2 Height
Housing_Material
Stainless Steel
Model
RPH-240-A
Phase
1
Power_Rating
1600
Series
RPH
Special Features

  • Heaters must be a minimum 6 in from ceiling, 24 in from a vertical surface and a minimum 72 in from face of heater to combustible surface
  • Instant, high intensity radiant heat with 30 deg symmetric heat pattern
  • Listed for indoor spot heating and for outdoor unprotected applications
  • Mounting plate (provided) on top center allows heater to be mounted parallel or angled using a standard pipe nipple and box cover (supplied by installer)
  • Specialized ruby red in quartz lamp infrared heating element for glare reduction
  • Stainless steel housing with coilzak aluminum reflector for good reflectivity and corrosion-resistance
Standard
ETLus Listed
Sub_Brand
TPI
Type
1-Phase
Voltage Rating
240
Wattage
1,600
