Panduit Panduit DNFR14-250FIB-L


Description

Industry Description

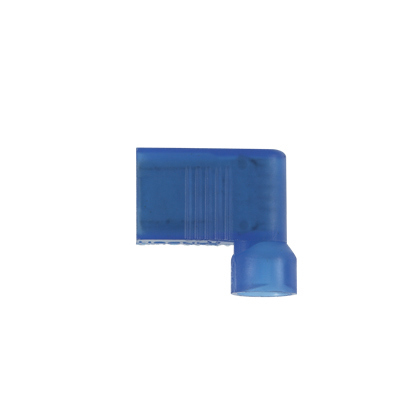

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50.

Modified Industry Description

Female Disconnect, Right Angle, Nylon Fully Insulated, 16 - 14 AWG, .250 IN x .032 IN Tab Size

AD Description

Panduit® Pan-Term® DNFR14-250FIB-L Vibration-Resistant Female Disconnect, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Brass, Blue, Fully Insulated

Specifications

Brand Name
Panduit
Color
Blue
Connection
Funnel Entry
Conductor Size
16 to 14
Country of Origin
MEX
Finish
Tin Plated
Insulation
Nylon - Fully Insulated
Material
Brass
Mounting
0.28
Package_Quantity
50
Special Features

  • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
  • Fully insulated design provides protection from electrical shorts
  • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
  • Right angle design for use in limited space applications
Standard
UL 310 Listed
Sub_Brand
Panduit
Tab_Size
0.25 in W x 0.032 in THK
Type
Fully Insulated Loose Piece Vibration Resistant
Voltage Rating
600
