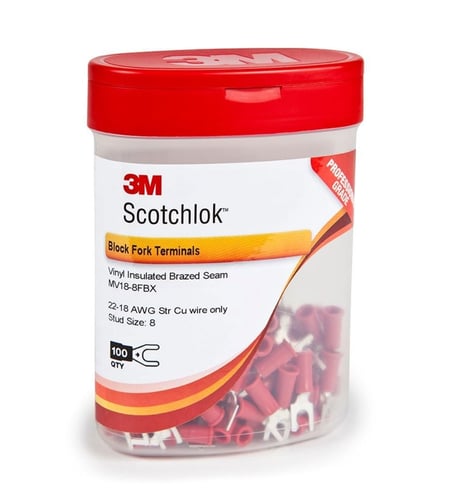

3M 3M MV18-8FBX


Description

Industry Description

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

VINYL INSULATED BRAZED SEAM BLOCK

AD Description

Scotchlok™ 051128-58744 Insulated Block Fork Terminal, 22 to 18 AWG Conductor, 0.85 in L, Brazed Seam Barrel, Copper, Red

Vendor Description

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance.

Specifications

Brand Name
3M
Color
Red
Conductor Size
22 to 18 AWG
Country of Origin
US
Finish
Electro-Tin Plated
Label_Description
BLOCK FORK VINYL INSULATED, 100/BOTTLE
Material
Copper
Operating_Voltage
100 per bottle
Package_Quantity
100
Special Features

  • Abrasion and corrosion resistant, flared, vinyl-sleeve insulation ensures easy crimping
  • Crimp termination
  • Electrolytic copper construction offers good conductivity
  • Free hanging (in-line) mounting
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Red vinyl-insulated, brazed seam barrel ensures a secure fit and offers reliable performance
  • Suitable for use in a terminal block
Standard
UL and CSA
Stud_Size
#8
Sub_Brand
3M
Terminal_Size
22 - 18 AWG
Type
Insulated Block
Voltage Rating
600/1000 VAC
