Thomas & Betts Thomas & Betts EYS21-TB


Description

Industry Description

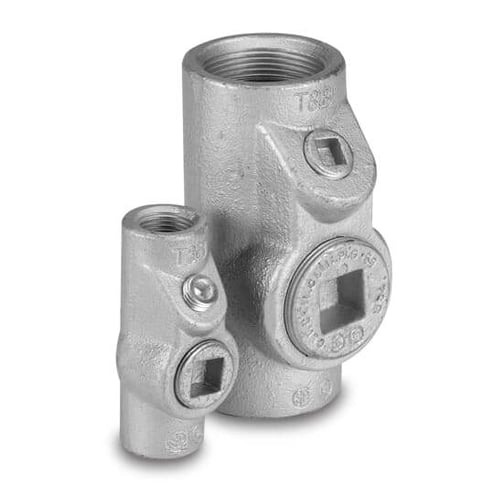

3/4 Inch EYS Sealing Fitting, Body Ductile Iron, Plug Gray Iron, Nipple Steel

Modified Industry Description

3/4 INDRAIN SEAL,IRON,VERT/HORIZ,XP

AD Description

T&B® EYS21-TB Double Coated Conduit Sealing Fitting, 3/4 in, For Use With IMC/Rigid Conduits, Ductile Iron, Aluminum Acrylic Painted/Zinc Plated

Vendor Description

T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
Seals Sections of Conduit Runs from Passage of Vapors, Flame, and Gases
Brand Name
Thomas & Betts
Color
Gray
Country of Origin
CN
Finish
Aluminum Acrylic Painted/Zinc Plated
Hub_Size
3/4ch
Material
Ductile Iron
Special Features

  • 1-1/4 in turning radius
  • Ductile iron body, gray iron plug, steel nipple
  • Female hub type
  • For sealing in vertical or horizontal position
  • Gray iron alloy body construction coated with nominal 0.002 in blue urethane on both interior and exterior
  • Minimum of five full threads and integral bushing
  • Nominal 0.04 in (40 mil) PVC coating bonded to exterior
  • Prevent pre-compression or pressure pilling in conduit systems
Standard
UL 886, CSA
Sub_Brand
Thomas & Betts
Type
Double Coated
Width_2
5.5000
