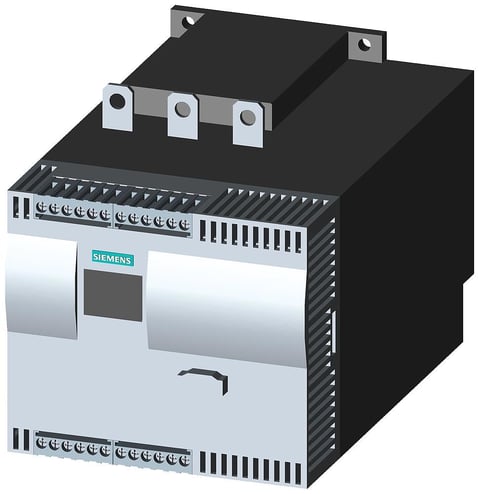

Siemens Siemens 3RW4435-6BC34


Description

Industry Description

Screw terminals 200-460 V AC, 115 V AC, common-3 203a, 150hp, standard 117a, 75hp, values with 460 V, 50 deg., SIRIUS soft starter

Modified Industry Description

SOFT

AD Description

SIRIUS 3RW4435-6BC34 High End Soft Starter With Bypass, 115 VAC V Coil, 3 Poles, IP00 Enclosure

Specifications

Amperage Rating
117
Country of Origin
CZ
Dimensions
200 mm H x 170 mm W x 270 mm D
Frequency_Rating
50 to 60
Length1
15.4400
Number_Of_Poles
3
Operating_Temperature
60
Phase
3
Special Features

  • 60 hp at 200/208 VAC, 40/75 hp at 220/230 VAC, 75/150 hp at 460/480 VAC
  • Connection to PROFIBUS and PROFINET with optional PROFIBUS DP or PROFINET module
  • Display of operating states and fault messages
  • Equipped with modern, ergonomic user prompting the 3RW44 softstarters can be commissioned quickly and easily using a keypad and a menu prompted, multi-line graphic display with background lighting
  • External display and operator module
  • Integrated bypass contact system to minimize power loss
  • Interface for communication with the PC for more accurate setting of the parameters as well as for control and monitoring
  • Simple integration to the motor feeder
  • Simple mounting and commissioning
  • Soft starting with breakaway pulse, torque control or voltage ramp, adjustable torque or current limiting as well as any combination of these, depending on load type
  • Solid state motor overload and intrinsic device protection
  • Start up detection, inside delta circuit for savings in terms of size and equipment costs
  • Various ramp down modes selectable, free ramp down, torque controlled pump ramp down, combined DC braking
  • Various setting options for the starting parameters such as starting torque, starting voltage, ramp up and ramp down time and much more in three separate parameter sets
Voltage Rating
200 to 460
Wattage
132
