3M 3M 5775A-MT


Description

Industry Description

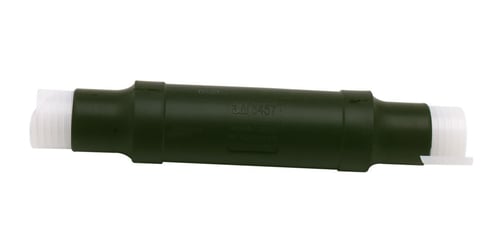

3M™ Cold Shrink QS-III 3/C Armored or Non-Armored Cable Splices 5775A-MT, 5776A-MT and 5777A-MT Series are designed for splicing 3-conductor, armored and non-armored, shielded power cables. The kits are rated for use on 5/8 kV cables with conductor sizes from 3/0 AWG-1000 kcmil (95-500 mm²) or 15 kV cables with conductor sizes from 2 AWG-750 kcmil (35-325 mm²).

Modified Industry Description

QSIII 3 Conductor Splice Kit

AD Description

3M™ 051128-53493 Cold Shrink QS-III Splice Kit, 5/8 to 15 kVAC, 2, 1, 1/0, 2/0, 3/0, 4/0 AWG Conductor, 52 in L Splice, Silicon Rubber

Vendor Description

3M™ 5775A-MT Series Resin QS-III Inline Trifurcating Cable Splice Kit is designed for splicing 5/8 to 15 kV rated shielded power cables. The cold shrink design ensures a quick installation and cable size transitions. This armored or non-armored splice kit is perfect for use in cable trays, cable racks, junction boxes and cable hangers, as well as aerial and wet or dry locations.

Specifications

Brand Name
3M
Cable_Type
Tape Shield
Color
Black
Conductor Size
2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK QS-III SPLICE KITS 5775A-MT, 2-4/0 AWG (35-95 MM2), 1 PER CASE
Material
Silicon Rubber
Package_Quantity
1
Special Features

  • 0.4 to 1.06 in OD connector
  • 1/0 AWG, 2/0 AWG, 1 AWG, 3/0 AWG, 2 AWG, 4/0 AWG for 15kV, 250 kcmil, 3/0 AWG, 4/0 AWG for 5/8kV conductor size
  • 1/case
  • 1090 psi tensile strength
  • 370 V/mil dielectric strength
  • 3M trifurcating accessory for 3-C to 3 single conductors MT-C
  • 4-1/2 in aluminum/copper maximum length, 5 in copper maximum length
  • 610% elongation
  • Cold shrink design ensures a quick installation and cable size transitions, armored or non-armored splice kit is perfect for use in cable trays, cable racks, junction boxes and cable hangers, as well as aerial and wet or dry locations
  • Resin QS-III in-line trifurcating cable splice kit is designed for splicing 5/8 to 15 kV rated shielded power cables
  • Silicon rubber splice body provides good high and low temperature performance and armor cast jacket offers mechanical protection
  • Solderless ground braid offers constant force spring connection
  • Splices shielded cables
  • Suitable for use with 10000 and 20000 series connectors or other ul listed in-line compression connectors
Sub_Brand
3M
Temperature_Rating
105 to 140
Type
Cold Shrink QS-III
Voltage Rating
5/8 to 15
