3M 3M M10-12RK
3M M10-12RK
Kirby Risk #: 2287252
UPC: 05400701903, 054007019039, 00054007019039
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

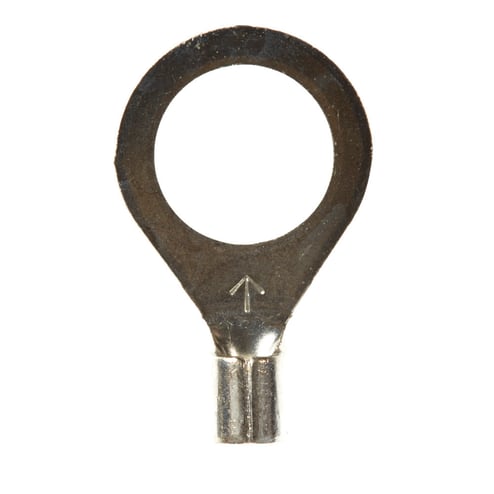

3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
Non Insulated Brazed Seam Ring Tongue Terminal
AD Description
Scotchlok™ 054007-01903 Standard Ring Tongue Terminal, 12 to 10 AWG Conductor, 1.19 in L, 0.135 in ID x 0.25 in L Brazed Barrel, ETP Copper, Yellow
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Yellow
|
| Conductor Size |
12 to 10 AWG
|
| Country of Origin |
US
|
| Label_Description |
NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL
|
| Material |
ETP Copper
|
| Operating_Voltage |
500 per bulk box
|
| Package_Quantity |
500
|
| Special Features |
|
| Standard |
UL and CSA
|
| Stud_Size |
1/2 in
|
| Sub_Brand |
3M
|
| Terminal_Size |
12 - 10 AWG
|
| Type |
Standard
|
| Voltage Rating |
600 to 1000 VAC
|
