Hubbell Hubbell CSB320R


Description

Industry Description

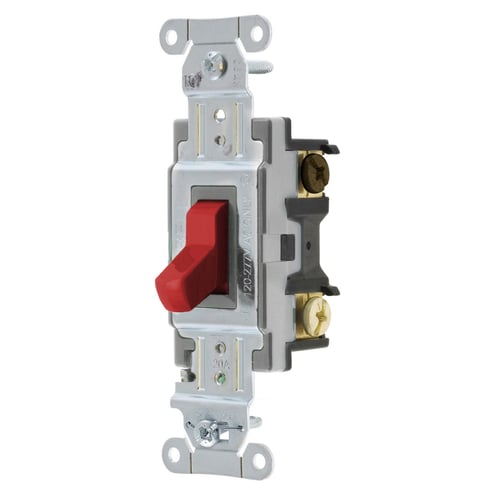

Hubbell Wiring Device Kellems, Switches and Lighting Controls, ToggleSwitch, Commercial Grade, Three Way, 20A 120/277V AC, Back and SideWired, Red

Modified Industry Description

20 A 120/277 V RED 3-WAY SWITCH

AD Description

Wiring Device-Kellems CSB320R 3-Way 2-Position Specification/Commercial Grade Standard Toggle Switch, 120/277 VAC, 20 A, 5540 W, 1 to 2 hp

Specifications

Action
Positive Snap
Actuator
Toggle
Amperage Rating
20
Application
Commercial Spec Grade
Brand Name
Hubbell
Color
Red
Connection
Back and Side Wired
Contact_Configuration
Two Position
Contact_Rating
Per UL 20
Country of Origin
CN
Enclosure
None
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Insulation
None
Material
Nylon
Mounting
Screw Mount
Number_Of_Poles
1
Operating_Cycles
50k
Operating_Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Size
Standard Sized
Special Features

  • Back wire entrance points for terminations accept two wires for feed-through capability avoiding pigtailing
  • Copper alloy spring contact arm and terminal plate assures proper contact alignment reducing heat rise
  • Elastomer rocker assures quiet operation and precise timing
  • Engineered thermoplastic housing is impact resistant for heavy duty commercial environments
  • Heavy duty nylon toggle resists abuse and chemical attack making it suitable for use in the toughest environments
  • Large brass binding head screws with deep slots secure wire connections
  • One piece bridge with integral grounding terminal with #8 brass screw allows compliance to NEC
  • Permanently lubricated assembly provides long life and trouble free operation
  • Prominent amperage marking on mounting strap allows easy identification of rating
  • Silver alloy contacts reduce contact erosion and prevent welding, providing long life
  • Stainless steel automatic grounding staple assures grounding continuity between mounting strap and metal wall box
  • Steel zinc plated mounting strap provides protection against corrosion
  • Strip gauge for accurate wiring
  • Thread cleaning captive mounting screw
Standard
NEMA WD1, UL20
Sub_Brand
Hubbell Wiring Device-Kellems
Type
General Purpose Switches
Voltage Rating
120/277
Wattage
5,540
