Panduit Panduit LCCX2/0-38D-X


Description

Industry Description

Two-hole, flex lug, long barrel, 2/0 AWG wire, 3/8 stud hole, 1 hole spacing.

Modified Industry Description

2/0 AWG 3/8 IN 2 HOLE LONG BARREL CU COMP FLEX LUG

AD Description

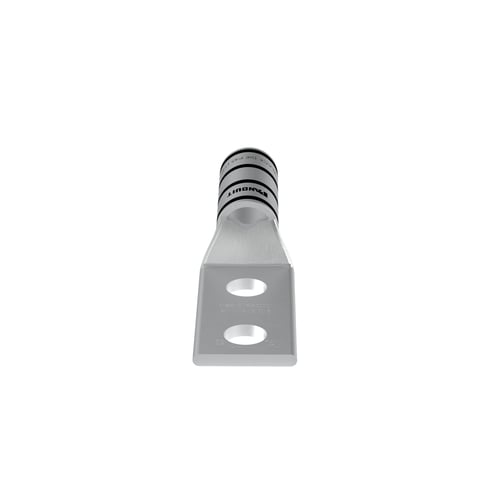

Panduit® Pan-Lug™ LCCX2/0-38D-X 2-Hole Compression Lug, 2/0 AWG Class B, C, G, H, I, K, M and DLO Copper Conductor, Die Code: P45, 3/8 in Stud, Tin Plated Copper

Specifications

Brand Name
Panduit
Color
Black
Conductor Material
Copper
Conductor Size
2/0 AWG Class B, C, G, H, I, K, M and DLO
Country of Origin
MEX
Material
Tin Plated Copper
Mounting
1 9/16
Number_Of_Holes
2
Package_Quantity
1
Size
2/0 Class B, C, G, H, I, K, M and DLO
Special Features

  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
  • Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
  • For use with flexible, extra-flexible and code stranded copper conductors
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Inspection window to visually assure full conductor insertion
  • Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance
  • Tin-plated to inhibit corrosion
Standard
C22.2 No. 65-13, 486A-486B File #E52164
Stud_Size
3/8
Sub_Brand
Panduit
Temperature_Rating
90
Type
2-Hole
Voltage Rating
35
