Ge Industrial GE Industrial TH3361JR


Description

Industry Description

Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. Listed to UL standard 98 enclosed and dead front switches. Suitable for use as service equipment when installed in accordance with the National Electrical Code. Certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. Meets or exceeds NEMA KS1 standard for enclosed switches, type HD. Fusible and non-fusible switches available (consult BuyLog for interrupt ratings). Quick-make, quick-break mechanism. 60/75 C conductor rating. Full cover interlocks. TH334001

AD Description

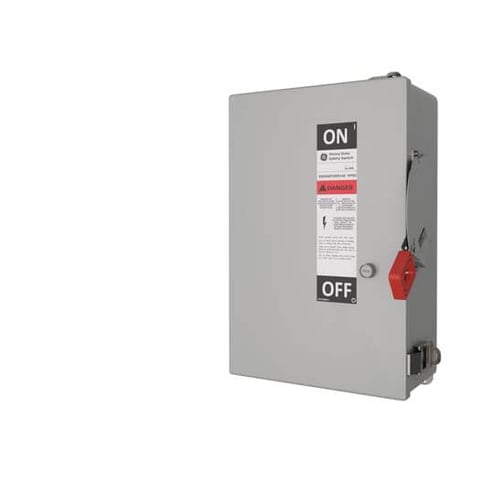

GE Spec-Setter™ TH3361JR Type TH Fused Heavy Duty Safety Switch, 600 VAC, 30 A, 7-1/2 hp, 3 hp, 5 hp, 15 hp, 10 hp, 20 hp, 3 Poles

Vendor Description

GE heavy duty safety switches are designed for commercial and industrial applications where safety, high performance and continuity of service are essential. Heavy duty switches are available in 30 to 1200 A, 600 VAC, 600 VDC maximum, fusible and non-fusible units and in NEMA Type 1 (indoor), Type 3R (outdoor), Type 4/4X (water and dust-tight, corrosion resistant) and Type 5/12 (drip and dust-tight) enclosures. When used with Class R or J fuses, 30 to 600 A switches have a UL Listed short circuit rating of 200000 A rms symmetrical. Switches rated 800 to 1200 A use Class L fuses and have a UL Listed short circuit rating of 100000 A rms symmetrical. GE heavy duty safety switches are UL Listed as service entrance equipment when installed in accordance with the National Electrical Code.

Specifications

Application
Electrical distribution and Control
Country of Origin
UKN
Length1
16.5000
Special Features

  • 7.5 hp at 240 VAC time delay, 3 hp at 480 VAC standard fuse, 5 hp at 480 VAC standard fuse, 7.5 hp at 480 VAC time delay, 15 hp at 480 VAC time delay, 3 hp at 600 VAC standard fuse, 7.5 hp at 600 VAC standard fuse, 10 hp at 480 VAC time delay, 20 hp at 480 VAC time delay, 5 at 250 VDC horsepower rating
  • Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
  • Coin-proof, defeatable dual interlocks meet all safety inspection requirements
  • Direct-drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
  • Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
  • Plated blades provide visible confirmation of contact position
  • Spring-reinforced fuse clips assure reliable contact for cool operation
  • Suitable for class H, K, J or R fuses
  • Three-point mounting pattern speeds installation and simplifies ganging in close quarters
  • Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
Standard
True
Sub_Brand
GE Industrial Solution
