3M 3M MH18-10FLX


Description

Industry Description

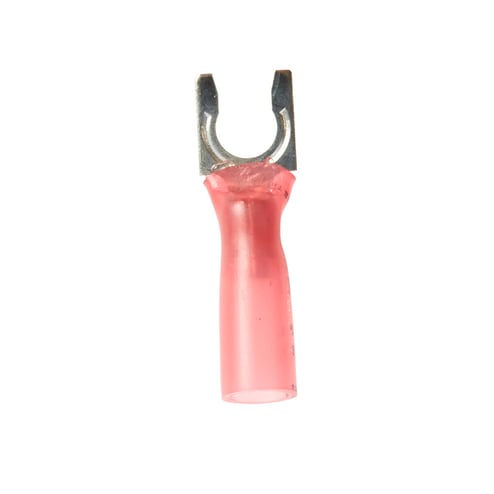

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

Locking Fork Brazed Seam Heat

AD Description

Scotchlok™ 051128-58915 Heat Shrinkable Locking Fork Terminal, 22 to 18 AWG Conductor, 1 in L, Brazed Seam Barrel, Copper, Red

Vendor Description

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection.

Specifications

Brand Name
3M
Color
Red
Conductor Size
22 to 18 AWG
Country of Origin
USA
Finish
Electro-Tin Plated
Label_Description
LOCKING FORK HEATSHRINK, 25/BOTTLE
Material
Copper
Operating_Voltage
25 per bottle
Package_Quantity
25
Special Features

  • Brazed seam terminal uses red pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • Crimp termination
  • Electrolytic copper construction offers good conductivity
  • Free hanging (in-line) mounting
  • Spring-like tongue firmly fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Standard
UL and CSA
Stud_Size
#10
Sub_Brand
3M
Terminal_Size
22 - 18 AWG
Type
Heat Shrinkable Locking
Voltage Rating
600/1000 VAC
