Thomas & Betts Thomas & Betts F2047


Description

Industry Description

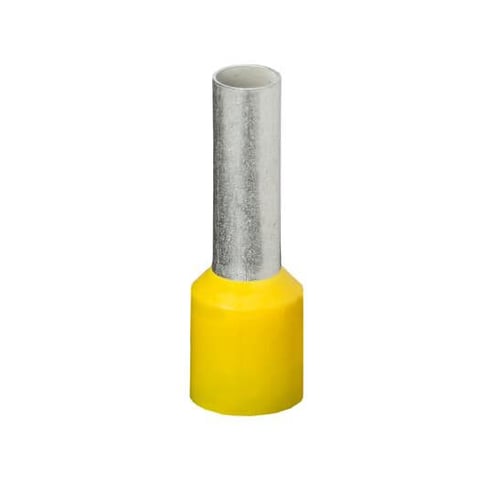

Polypropylene-Insulated Ferrule, Total Length 1.142 Inches/29mm, Pin Length .630 Inches/18mm, Pin Diameter .295 Inches/7.5mm, Base Diameter .433 Inches/11mm, Wire Range 4 AWG/25.00mm2, Color Yellow, Copper, Tin Plated

Modified Industry Description

INS NYL FERRULE 4, 25 MM2, LG 1.142

AD Description

Sta-Kon® F2047 F Series Insulated Wire Ferrule, 4 AWG Stranded Copper Conductor, 1.142 in L, Copper, Yellow

Vendor Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.

Specifications

Brand Name
Thomas & Betts
Color
Yellow
Conductor Size
4
Country of Origin
DE
Finish
Tin Plated
Material
Copper
Package_Quantity
50.000
Special Features

  • ERG4 recommended tool
  • Ferrules are the preferred alternative to twisting wire stands or tinning the wire end before terminating into a terminal block
  • Ferrules are thin-walled copper tubes, which are mechanically crimped onto the ends of stranded wires
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks
  • Fraying and breaking of wire strands is prevented and the possibility of an unreliable connection is minimized
  • Insulated ferrules prevent conductor breakage due to bending, wire stress or vibration, while facilitating wire insertions into the terminal block clamp
  • Made of high conductivity copper
  • Meets emerging global standards, requiring wire to metric-style terminal block installations to be terminated with a "pin" style terminal
  • Polypropylene insulated
Standard
UL E489056
Type
Insulated
Voltage Rating
300
