Intermatic Intermatic KM2ST-1G
Intermatic KM2ST-1G
Kirby Risk #: 2272691
UPC: 07827515366, 078275153660, 614573042116, 10614573042113
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Intermatic
Description
Industry Description

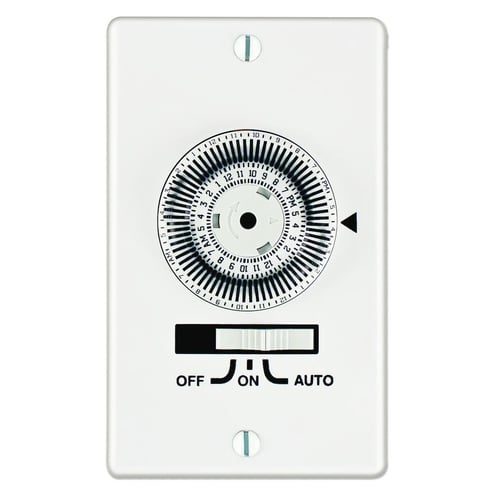

The 24-Hour, Electromechanical In-Wall Timer, 20A, 120V, White, 1 Gang he KM2 Series Electromechanical In-Wall Timers replace standard wall switches (toggles) and provide automatic control of outdoor or indoor lighting, fans, pumps, office machines and other types of circuits. Captive trippers are easy to set and cannot be lost. Seventy-two trippers provide up to 36 ON/OFF events in a 24/hour period. Three-way OFF/AUTO/ON override switch provides continuous ON or OFF positions. The timers feature easy wiring and installations.
Modified Industry Description
20A 120V - 24 HOUR IN WALL TIMER
AD Description
Intermatic® Grasslin® KM2ST-1G Heavy Duty Electromechanical Timer, 20 min to 24 hr Setting, 120 VAC, 1 hp, 1NO Contact, 1 Poles
Vendor Description
The KM2 series Electromechanical in-wall timers replace standard wall switches (toggles) and provide automatic control of outdoor or indoor lighting, fans, pumps, office machines and other types of circuits. Captive trippers are easy to set and cannot be lost. Seventy two trippers provide up to 36 ON OFF events in a 24 hr period. Three-way OFF/Auto ON override switch provides continuous ON or OFF positions. The timers feature easy wiring and installations.
Specifications
| Action |
1 x SPST
|
|---|---|
| Amperage Rating |
20
|
| Application |
Dusk to Dawn cntrl.
|
| Brand Name |
Intermatic
|
| Connection |
3- Prong
|
| Contact_Configuration |
1 NO
|
| Contact_Rating |
20 AMP @ 120 VAC
|
| Country of Origin |
MX
|
| Enclosure |
Plastic Outdoor
|
| Environmental_Conditions |
Indoor/Outdoor
|
| Frequency_Rating |
50/60HZ
|
| Mounting |
Locking Type
|
| Number_Of_Poles |
1
|
| Operating_Temperature |
(-)40 - 158F
|
| Power_Consumption |
3 watts Max.
|
| Sensitivity |
1-5 FC ON; 3-15 FC OFF
|
| Sensor |
Cad. Sulft.
|
| Special Features |
|
| Standard |
ANSI C136.10
|
| Sub_Brand |
Intermatic
|
| Switch_Type |
SPST
|
| Timer_Duration |
24
|
| Timing_Range |
Dusk On - Dawn OFF
|
| Type |
7 Day
|
| Voltage Rating |
120
|
| Wall_Plate_Color |
White
|
| Wattage |
1,350
|
