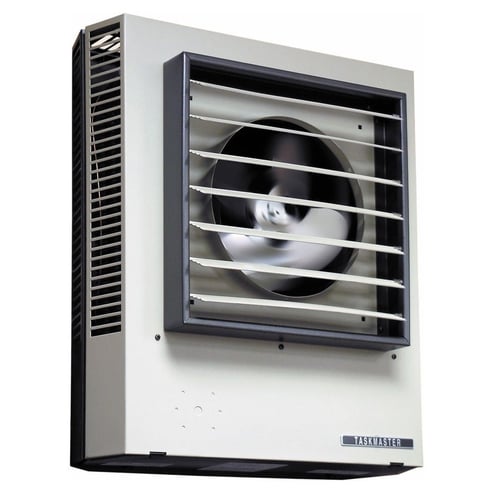

TPI TPI P3P5115CA1N


Description

Industry Description

Fan Forced Unit Heater, 3 PH, 15 KW, 480 V, Wall Mounting, Steel Housing Material, Dimensions- 21-1/2 Width X 28-11/16 Height X 6-1/2 Depth IN, BTU Rating- 51.2 (Per Hour), 18.1 AMP, Powder Coated Finish

Modified Industry Description

Fan Forced Unit Heater 3PH 15KW 480V

AD Description

TPI P3P5115CA1N 5100 3-Phase Fan Forced Standard Unit Heater, 51.2 Btu/hr Capacity, 480 VAC, 15 kW Power Rating

Specifications

Amperage Rating
18.1
Application
Indoor-Commercial/Industrial
Brand Name
TPI
Country of Origin
US
DimensionsInches
21-1/2 Width X 28-11/16 Height X 6-1/2 Depth IN
Finish
Powder Coated
Flow_Rate
1100
Frequency_Rating
50/60
Housing_Material
Steel
Model
P3P5115CA1N
Mounting
Wall
Phase
3
Special Features

  • All motors mounted with rubber insulators to minimize vibration and noise
  • All units come equipped with automatic reset type limit controls to de-energize the heater should an over temperature situation occur
  • Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow
  • Fan over-ride purges unit of residual heat at shutdown
  • Heavy 18 ga welded steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation maintenance
  • Louvers are individually adjustable for directional control of air flow up to 15 deg from straight horizontal
  • Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 to 20 kW models
  • Unit heaters can be mounted for horizontal or vertical discharge
Standard
cETLus Listed;ABS Approved
Sub_Brand
TPI
Type
3-Phase Fan Forced Standard
Voltage Rating
480
