3M 3M 5501-CI-21


Description

Industry Description

3M™ 5500 Series Molded Rubber QS II Splice Kit is an inline splice designed to use on 15kV tape shield, wire shield, or UniShield® cables with copper or aluminum conductors. Its peroxide cured EPDM rubber construction ensures a long life. The continuous current rating of each splice is the same as the current rating of the cable that it is sized to accommodate.

Modified Industry Description

Molded Rubber Inline Splice Kit

AD Description

3M™ 054007-09628 5500 Cold Shrink Splice Kit, 15 kVAC, 0.6 in Cable, 2 to 1, 1, 1/0 AWG Conductor, 9 in L Splice, EPDM Rubber

Vendor Description

3M™ 5500 Series Molded Rubber QS-II Splice Kit is an inline splice designed to use on 15kV tape shield, wire shield, or UniShield® cables with copper or aluminum conductors. Its peroxide-cured EPDM rubber construction ensures a long life. The continuous current rating of each splice is the same as the current rating of the cable that it is sized to accommodate.

Specifications

Brand Name
3M
Cable_Type

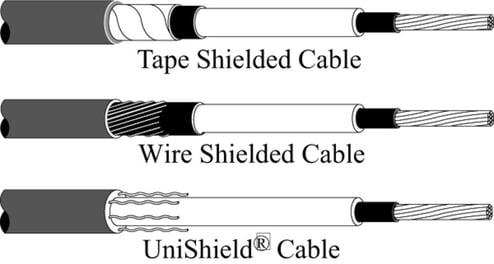

Tape Shield/UniShield®/Wire Shield
Color
Black
Conductor Material
Aluminum; Copper
Conductor Size
2 to 1 AWG, 1 AWG, 1/0 AWG
Country of Origin
US
Functions
CI-21
Label_Description
3M(TM) QS-II MOLDED RUBBER SPLICE 5501-CI-21, 2-1 AWG STRANDED 1-1/0 AWG SOLID, CABLE INSULATION O.D. 0.637-.0.900 IN, 1 PER CASE
Material
EPDM Rubber
Package_Quantity
1
Special Features

  • 1/case
  • 1400 psi tensile strength
  • 2 to 1 AWG stranded, 1, 1/0 AWG solid conductor size
  • 365 V/mil dielectric strength
  • 750% elongation
  • Accommodates 2 to 1 AWG stranded and 1 to 1/0 AWG solid copper or aluminum conductors
  • Factory tested to offer reliability
  • For use with solid dielectric cables, polyethylene (high and low density) cross linked polyethylene (XLP) and ethylene propylene rubber (EPR)
  • In-line splice to use on tape shield, wire shield or UniShield® cables
  • No soldering required, minimum amount of taping, no special tools required to install, immediately energizable
  • Peroxide cured EPDM rubber construction provides physical protection
  • Polyolefin foam, copper conductor
Sub_Brand
3M
Type
Cold Shrink
Voltage Rating
15
