Leviton Leviton 49991-SSC


Description

Industry Description

FastCAM pre-polished Connector, SC (blue), Single-mode

Modified Industry Description

CONN SC SM ZIRC BLUE

AD Description

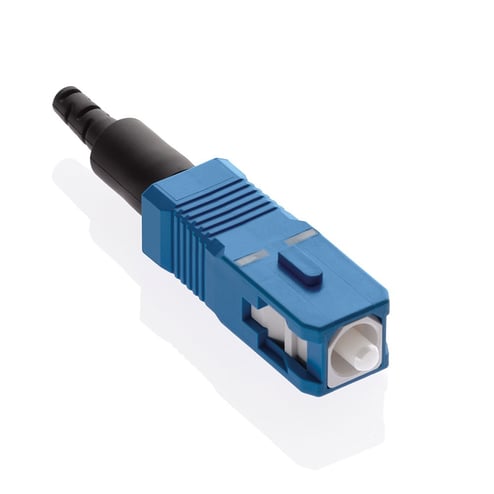

Leviton® FastCAM® 49991-SSC Pre-Polished Field Installable Connector, SC Connector, OS2 Single Mode Fiber, Pre-Radiused Zirconia Ferrule

Vendor Description

FastCAM® connectors are pre-polished, field installable connectors that eliminate the need for hand polishing, bonding or epoxy in the field. FastCAM® connectors are available in LC, SC or ST, singlemode or multi-mode (standard 50/125 um, 62.5/125 um and laser optimized 50/125 um) configurations terminated on 250 or 900 um buffered fiber and/or 2 or 3 mm jacketed fiber. LC and SC connectors allow verification of optical continuity, by use of the visual fault locator (VFL). FastCAM® connectors are designed for premise environments, patch panels and rapid repair/replacement requirements, as well as data centers and applications requiring fast network deployment.

Specifications

Application
Commercial
Brand Name
Leviton
Color
Blue
Country of Origin
UKN
Fiber_Type
OS2 Single Mode
Return_Loss
55
Size
1.77 L X 0.35 W X 029 D
Special Features

  • -40 to 75 deg C temperature rating
  • 55 dB return loss
  • Fast and easy to install (<1 min)
  • Higher yields with visual fault locator (VFL) compatible LC, SC and ST connectors
  • Low insertion loss connection
  • No polishing, epoxy curing, consumables
  • No proprietary tools
  • Precision mechanical termination
  • Uses proven, molded V-groove technologies

Standard
ANSI (TIA-568-C.3);ANSI (TIA-604-3)
Sub_Brand
Leviton
Temperature_Rating
-40 to +75
Type
Pre-Polished
Width_2
6.5000
