Panduit Panduit LCDX500-12-6


Description

Industry Description

Two-hole, flex lug, 500 kcmil cable, 1/2 stud hole, 1.75 hole spacing.

Modified Industry Description

COPPER COMP. LUG, 2 HOLE, 500 KCMIL

AD Description

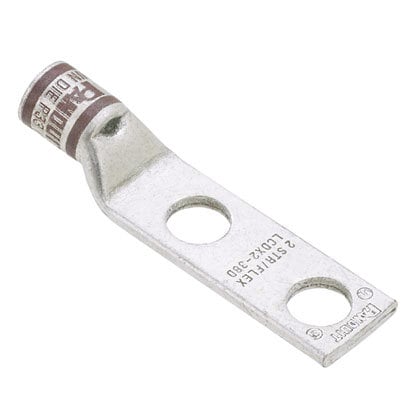

Panduit® Pan-Lug™ LCDX500-12-6 2-Hole Compression Lug, 500 kcmil Class G, H, I, K, M and 535.3 kcmil DLO Copper Conductor, Die Code: P99, 1/2 in Stud, Tin Plated Copper

Specifications

Brand Name
Panduit
Color
Pink
Conductor Material
Copper
Conductor Size
500 kcmil Class G, H, I, K, M and 535.3 kcmil DLO
Country of Origin
MEX
Material
Tin Plated Copper
Mounting
1 9/16
Number_Of_Holes
2
Package_Quantity
1
Size
500 kcmil Class G, H, I, K, M and 535.3 kcmil DLO
Special Features

  • Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
  • Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
  • For use with flexible, extra-flexible and code stranded copper conductors
  • Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
  • Inspection window to visually assure full conductor insertion
  • Tin-plated to inhibit corrosion
Standard
CSA certified C22.2 No. 65-13, UL listed 486A-486B File #E52164
Stud_Size
1/2
Sub_Brand
Panduit
Temperature_Rating
90
Type
2-Hole
Voltage Rating
35
