Panduit Panduit FRUPS4X4BL
Panduit FRUPS4X4BL
Kirby Risk #: 2270119
UPC: 07498345107, 074983451074, 50074983451079, 00074983451074
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

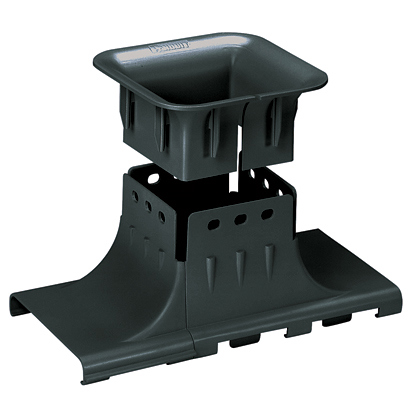

4x4 Up Spout. Allows cable to be directed upward out of the channel deployed directly below racks and cabinets in underfloor installations. Provides 2in (50.8mm) bend radius. Snaps directly onto the channel and can be positioned to allow cables to be laid in. A 1in (25.4mm) top bezel is included. Other fittings can be installed for specific applications including FTR4X4BL and FIDT4X4BL. Black.
Modified Industry Description
Fitting, Up Spout, 4IN x 4IN (100mm
AD Description
Panduit® FiberRunner® FRUPS4X4BL Vertical Spill-Over Up Spout Fitting, 10 in L x 5.43 in W x 5.2 in H, ABS
Vendor Description
Allows cable to be directed upward out of the channel deployed directly below racks and cabinets in underfloor installations. Provides 2 in bend radius. Snaps directly onto the channel and can be positioned to allow cables to be laid in. A 1 in top bezel included. Other fittings can be installed or specific applications including FTR4X4BL and FIDT4X4BL.
Specifications
| Application |
Routing System is a System of Channel, Fittings and Brackets Designed to Segregate, Route, and Protect Fiber Optic and High Performance Copper Cabling. It is Suited for Data Center Applications where Cable is Routed from Distribution Areas to Equipment
|
|---|---|
| Brand Name |
Panduit
|
| Cable_Specification |
4 x 4 FiberRunner Fitting
|
| Country of Origin |
USA
|
| Material |
ABS
|
| Standard |
RoHS Compliant
|
| Sub_Brand |
Panduit
|
| Type |
Up Spout
|
| Width_2 |
14.4600
|
| Width_3 |
14.4000
|
