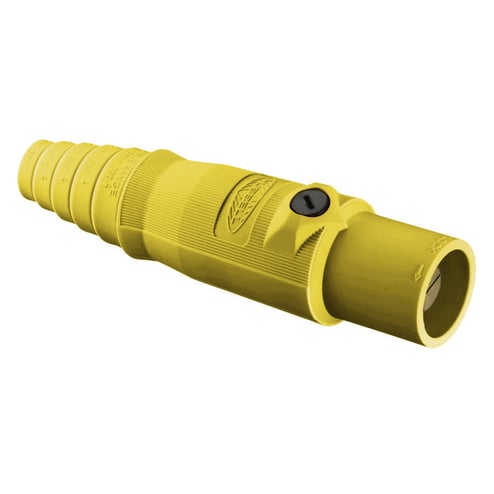

Hubbell Hubbell HBL300MY


Description

Industry Description

Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Male, Plug, 300A 250V DC/600V AC, Single Conductor,Double Set Screws, Yellow

Modified Industry Description

YELLOW MALE PLUG, 600/250V, 400A, 1 POLE, INDUSTRIAL GRADE

AD Description

Wiring Device-Kellems HBL300MY 16 Series Heavy Duty Male Standard In-Line Plug With SC/PPC Cord, 600 VAC/250 VDC, 400 A, 4 to 2/0/6 to 2/0 AWG Wire, Pressure Screw

Vendor Description

Hubbell wiring Device-Kellems offers a full line of innovative, high quality, series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve. UL enclosure Types 3R, 4X and 12 rating suitable for use in almost any environment.

Specifications

Amperage Rating
400
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Yellow
Connection
Pressure Terminal Screws
Conductor Size
#4 AWG to #2/0 AWG
Cord_Type
Listed SC/PPC Type
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Composite
Mounting
Cord Mounted
NEMA_Rating
Non-NEMA
Number_Of_Poles
1
Number_Of_Wires
1
Phase
1
Size
Standard Sized
Special_Features

  • Insulgrip® style housing for superior gripping
  • Large raised alignment arrow aids in the mating of devices
  • Non-conductive retaining screw locks contacts in place

Standard
UL 498 for attachment plugs and receptacles UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Male Plug
Voltage Rating
600//250
Wattage
240,000
